387006653
ActiveLaird Thermal Systems, Inc.
OTX08,66,F0,1009,GG,W2.25
387006653
ActiveLaird Thermal Systems, Inc.
OTX08,66,F0,1009,GG,W2.25
Description
General part information
387006653

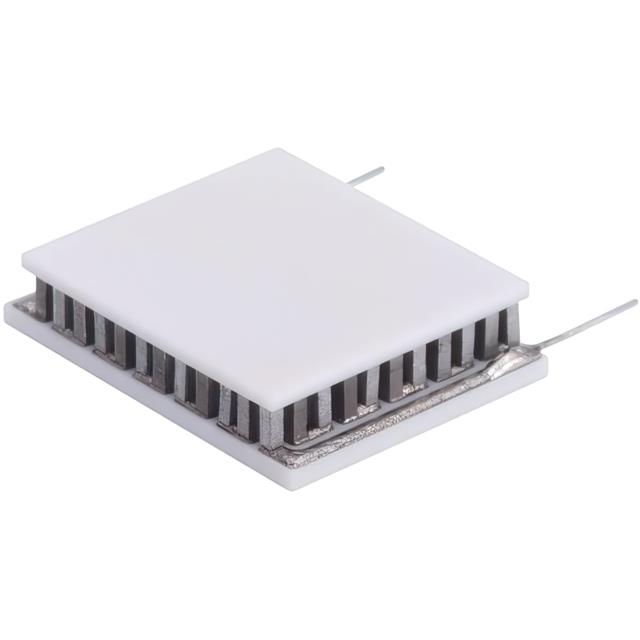

Peltier Module 3.7W @ 27°C 0.8 A 120°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 387006653 |
|---|---|
| Current - Max | 800 mA |
| Delta Tmax | 72.9 °C |
| Features | Lead Wires |
| Height | 2.8 mm |
| Maximum Power Dissipation (Qmax) | 3.7 W |
| Number of Stages | 1 |
| Operating Temperature | 120 °C |
| Resistance | 8.9 Ohms |
| Size / Dimension Length | 11.4 mm |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 8.9 mm |
| Voltage - Max | 7.7 V |
