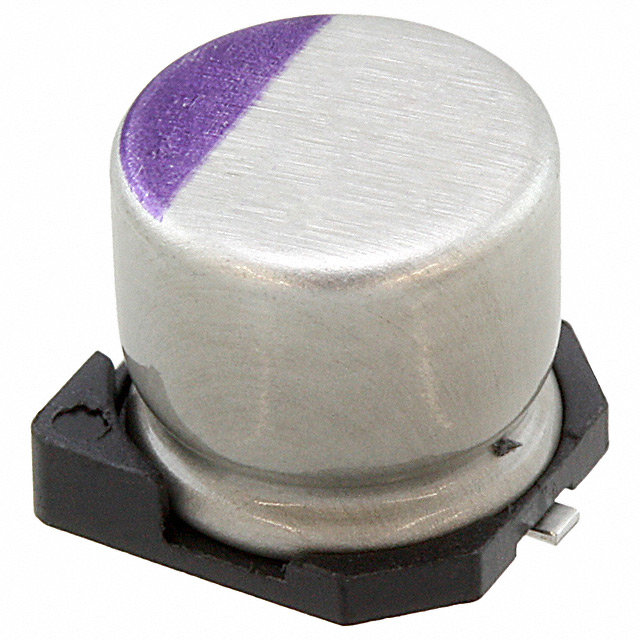

10SVPC120M

Active

Panasonic Electronic Components

CAP ALUM POLY 120UF 20% 10V SMD

Search across all available documentation for this part.

Active

Panasonic Electronic Components

CAP ALUM POLY 120UF 20% 10V SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10SVPC120M	10SVPC Series

Applications	General Purpose	General Purpose
Capacitance	120 µF	68 - 330 µF
ESR (Equivalent Series Resistance)	27 mOhms	19 - 27 mOhms
Height - Seated (Max) [Max]	0.236 in	0.236 - 0.276 in
Height - Seated (Max) [Max]	6 mm	6 - 7 mm
Lifetime @ Temp.	2000 Hrs	2000 Hrs
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can - SMD	Radial, Can - SMD
Ripple Current @ High Frequency	2.32 A	2.32 - 3.46 A
Ripple Current @ Low Frequency	116 mA	116 - 173 mA
Size / Dimension [diameter]	0.248 in	0.197 - 0.315 in
Size / Dimension [diameter]	6.3 mm	5 - 8 mm
Surface Mount Land Size [x]	6.6 mm	5.3 - 8.3 mm
Surface Mount Land Size [x]	0.26 in	0.209 - 0.327 in
Surface Mount Land Size [y]	0.26 in	0.209 - 0.327 in
Surface Mount Land Size [y]	6.6 mm	5.3 - 8.3 mm
Tolerance	20 %	20 %
Type	Polymer	Polymer
Voltage - Rated	10 V	10 V

CAP ALUM POLY 120UF 20% 10V SMD

Part	Ripple Current @ High Frequency	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Voltage - Rated	Applications	Mounting Type	Lifetime @ Temp.	Tolerance
Panasonic Electronic Components 10SVPC120MV	2.6 A	Radial, Can - SMD	0.248 in	6.3 mm	120 µF	0.236 in	6 mm	Polymer	130 mA	105 ░C	-55 °C	22 mOhms	0.26 in	6.6 mm	6.6 mm	0.26 in	10 V	General Purpose	Surface Mount	2000 Hrs	20 %
Panasonic Electronic Components 10SVPC330M	3.46 A	Radial, Can - SMD	0.315 "	8 mm	330 µF	0.276 "	7 mm	Polymer	173 mA	105 ░C	-55 °C	19 mOhm	0.327 in	8.3 mm	8.3 mm	0.327 "	10 V	General Purpose	Surface Mount	2000 Hrs	20 %
Panasonic Electronic Components 10SVPC120M	2.32 A	Radial, Can - SMD	0.248 in	6.3 mm	120 µF	0.236 in	6 mm	Polymer	116 mA	105 ░C	-55 °C	27 mOhms	0.26 in	6.6 mm	6.6 mm	0.26 in	10 V	General Purpose	Surface Mount	2000 Hrs	20 %
Panasonic Electronic Components 10SVPC270M	3.22 A	Radial, Can - SMD	0.315 "	8 mm	270 µF	0.276 "	7 mm	Polymer	161 mA	105 ░C	-55 °C	22 mOhms	0.327 in	8.3 mm	8.3 mm	0.327 "	10 V	General Purpose	Surface Mount	2000 Hrs	20 %
Panasonic Electronic Components 10SVPC68MV	2.54 A	Radial, Can - SMD	0.197 "	5 mm	68 µF	0.236 in	6 mm	Polymer	127 mA	105 ░C	-55 °C	23 mOhm	0.209 in	5.3 mm	5.3 mm	0.209 in	10 V	General Purpose	Surface Mount	2000 Hrs	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 27mOhm 2000 Hrs @ 105°C
