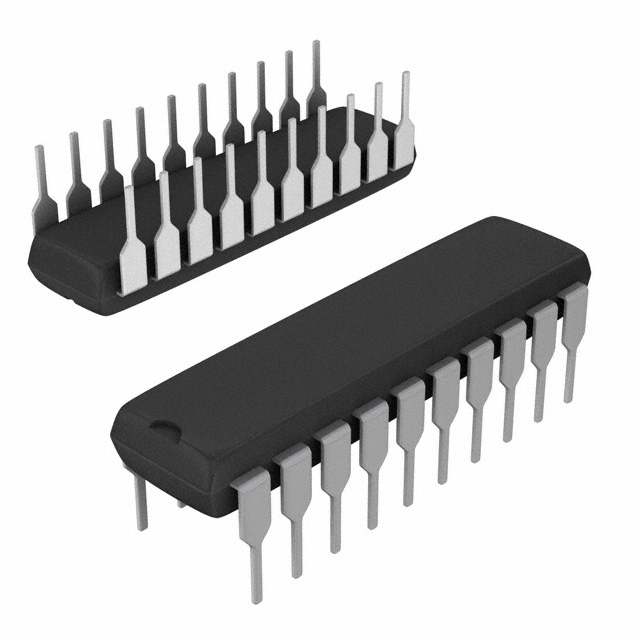

CY8C24223A-24PXI
ObsoleteInfineon Technologies
IC MCU 8BIT 4KB FLASH 20DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CY8C24223A-24PXI
ObsoleteInfineon Technologies
IC MCU 8BIT 4KB FLASH 20DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CY8C24223A-24PXI |
|---|---|
| Connectivity | I2C, SPI, UART/USART |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Data Converters [custom] | A/D 8x14b |
| Data Converters [custom] | D/A 2x9b |
| Mounting Type | Through Hole |
| Number of I/O | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 20-DIP |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in |
| Peripherals | POR, PWM, WDT |
| Program Memory Size | 4 KB |
| Program Memory Type | FLASH |
| RAM Size | 256 x 8 |
| Speed | 24 MHz |
| Supplier Device Package | 20-DIP |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.25 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CY8C24223 Series
M8C PSOC®1 CY8C24xxx Microcontroller IC 8-Bit 24MHz 4KB (4K x 8) FLASH 20-DIP
Documents
Technical documentation and resources
