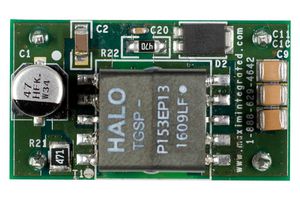

Specification	MAXREFDES113B#

Board Type	Fully Populated
Contents	Board
Current - Output	1.6 A
Frequency - Switching	200 kHz
Isolated Output Count	1
Main Purpose	DC/DC Converter
Output Type	Isolated
Power - Output	20 W
Regulator Topology	Flyback
Supplied Contents	Board(s)
Total Output Count	1
Utilized IC / Part	MAX17596
Voltage - Input (Maximum)	36 V
Voltage - Input (Minimum)	17 V
Voltage - Output	12 V
