PC47EI50-Z

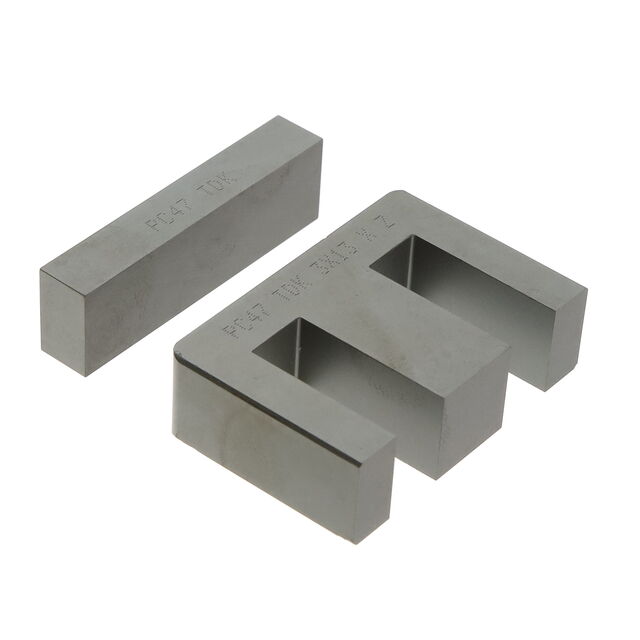

Uncoated PC47 Ferrite Core E Type 1.969" (50.00mm) Length Width Diameter 1.313" (33.35mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | PC47EI50-Z |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 0.409 mm⁻¹ |
| Core Type | E |
| Effective Area (Ae) | 230 mm² |
| Effective Length (le) | 94 mm |
| Effective Magnetic Volume (Ve) | 21620 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 1.313 in |
| Inductance Factor (Al) | 6.11 µH |
| Initial Permeability (µi) | 2500 |
| Length | 1.969 in |
| Material | PC47 |
| Tolerance | 25 % |
