169-60110
ActiveHELLERMANNTYTON

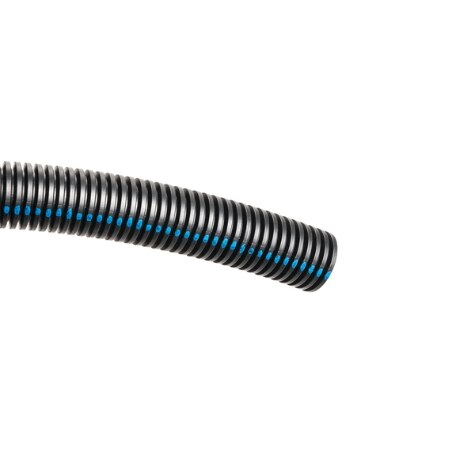

SPIRAL WRAPS, SLEEVES, TUBING & CONDUIT CONVOLUTED TUBING, FLAME RETARDANT, UNSLIT, 0.25" DIA, PP, BLACK, 2500 FT/CTN
169-60110
ActiveHELLERMANNTYTON
SPIRAL WRAPS, SLEEVES, TUBING & CONDUIT CONVOLUTED TUBING, FLAME RETARDANT, UNSLIT, 0.25" DIA, PP, BLACK, 2500 FT/CTN
Description
General part information
169-60110
SPIRAL WRAPS, SLEEVES, TUBING & CONDUIT CONVOLUTED TUBING, FLAME RETARDANT, UNSLIT, 0.25" DIA, PP, BLACK, 2500 FT/CTN
Technical Specifications
Parameters and characteristics for this part
| Specification | 169-60110 |
|---|---|
| Color | Black |
| Diameter - Inside | 0.266 in |
| Diameter - Outside | 0.398 in |
| Heat Protection | Flame Retardant |
| Length | 2500 ft |
| Liquid Protection | Fluid Resistant |
| Material | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
| Wall Thickness | 0.004 in |
