MMD-06CZ-R68M-V1
ActivePulse Electronics
FIXED IND 680NH 15.5A 5.5MOHM SM
MMD-06CZ-R68M-V1
ActivePulse Electronics
FIXED IND 680NH 15.5A 5.5MOHM SM
Description
General part information
MMD-06CZ-R68M-V1

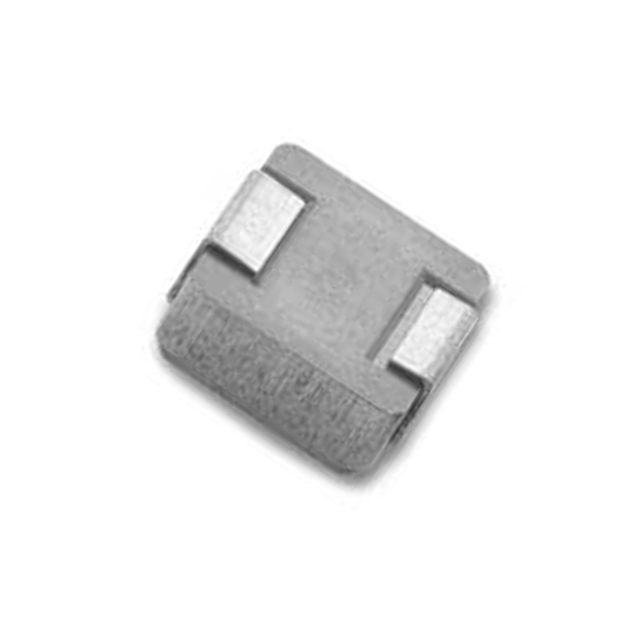

680 nH Shielded Molded Inductor 15.5 A 5.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | MMD-06CZ-R68M-V1 |
|---|---|
| Current - Saturation (Isat) | 25 A |
| Current Rating | 15.5 A |
| DC Resistance (DCR) (Max) | 5.5 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 680 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.27 in |
| Size / Dimension Width | 0.255 in |
| Tolerance | 20 % |
| Type | Molded |
