Description
General part information

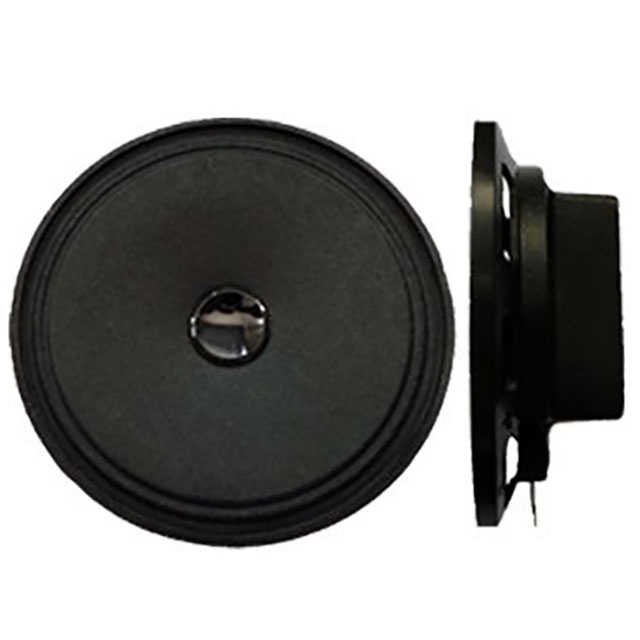

SOD2071Z8
8 Ohms General Purpose Speaker 1 W 340 Hz ~ 3.5 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | SOD2071Z8 |
|---|---|
| Efficiency - dBA | 87 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 340 Hz |
| Frequency Range (Max) | 3.5 kHz |
| Frequency Range (Min) | 340 Hz |
| Height - Seated (Max) | 0.764 in |
| Impedance | 8 Ohm |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Max | 2 VA |
| Power - Rated | 1 VA |
| Shape | Round |
| Size / Dimension Diameter | 2.52 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
