000-34475

Active

AMPHENOL RF

CONN TRIAX 0HZ TO 0.3GHZ 50OHM SOLDER CUP ST PANEL MOUNT RCP SILVER

Deep-Dive with AI

Search across all available documentation for this part.

000-34475

Active

AMPHENOL RF

CONN TRIAX 0HZ TO 0.3GHZ 50OHM SOLDER CUP ST PANEL MOUNT RCP SILVER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 137.42
		10	$ 126.10
		25	$ 121.25
		50	$ 117.21

Description

General part information

000-34 Series

Triaxial Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-34475	000-34 Series

Accessory Type	-	Dust, Cap (Cover)
Adapter Series	-	N to UHF
Adapter Type	-	Plug to Jack
Body Finish	Nickel	Nickel, Silver
Body Material	Brass	Brass
Cable Group	-	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Silver	Silver
Color	-	Silver
Connector Style	Triaxial	N Type, Triaxial
Connector Type	Receptacle, Female Socket	Male Pin, Plug, Female Socket, Jack, Receptacle
Contact Termination	Solder Cup	Solder, Solder Cup
Conversion Type	-	Between Series
Convert To (Adapter End)	-	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Copolymer
Features	-	Chain
For Use With/Related Products	-	Triaxial Connectors
Frequency - Max [Max]	300 MHz	300 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Impedance	-	Non-Constant

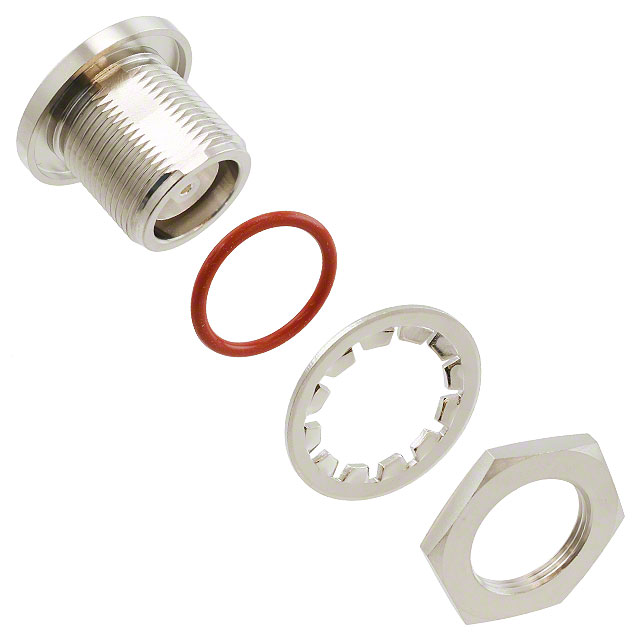

Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Ingress Protection	Weatherproof	Weatherproof
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Clamp, Solder
Voltage Rating	5000 V	5000 V

000-34 Series

CONN N PLUG 50 OHM SOLDER

Part	Mating Cycles	Connector Type	Dielectric Material	Shield Termination	Body Finish	Impedance	Housing Color	Body Material	Cable Group	Number of Ports	Contact Termination	Center Contact Plating	Center Contact Material	Connector Style	Impedance	Convert To (Adapter End)	Conversion Type	Adapter Series	Adapter Type	Includes	Frequency - Max [Max]	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Ingress Protection	Accessory Type	For Use With/Related Products	Color	Features
AMPHENOL RF 000-34525	500	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	Clamp	Nickel	50 Ohms	Silver	Brass	140, 210, 59B, 62, 8263, 8279, 9209, Belden 8241, RG-59	1	Solder	Silver	Brass	N Type
AMPHENOL RF 000-34400-1003	500	Female Socket, Jack	Copolymer	Clamp	Nickel		Silver	Brass		1	Solder	Silver	Beryllium Copper	Triaxial	Non-Constant
AMPHENOL RF 000-34125						50 Ohms										Male Pin, N Plug	Between Series	N to UHF	Plug to Jack
AMPHENOL RF 000-34475	500	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	Solder	Nickel	50 Ohms	Silver	Brass		1	Solder Cup	Silver	Beryllium Copper	Triaxial						1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut	300 MHz	5000 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	Weatherproof
AMPHENOL RF 000-34475-1003	500	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	Solder	Silver		Silver	Brass		1	Solder Cup	Silver	Beryllium Copper	Triaxial	Non-Constant										Bulkhead - Front Side Nut
AMPHENOL RF 000-34450	500	Female Socket, Receptacle	Polytetrafluoroethylene (PTFE)	Solder	Nickel	50 Ohms	Silver	Brass		1	Solder Cup	Silver	Beryllium Copper	Triaxial						1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut	300 MHz	5000 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	Weatherproof
AMPHENOL RF 000-34275					Nickel			Brass						Triaxial													Cap (Cover), Dust	Triaxial Connectors	Silver	Chain
