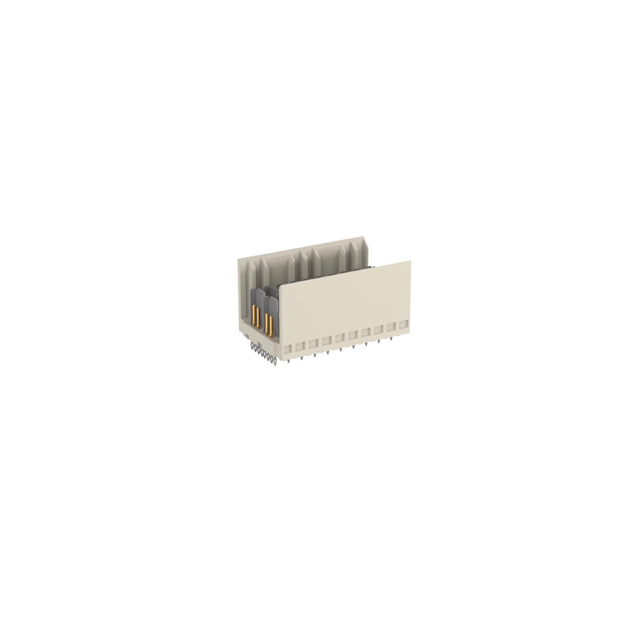

464520
ObsoleteTE Connectivity AMP Connectors
ZD PLUS M 2-10 20POS 1.6MM
464520
ObsoleteTE Connectivity AMP Connectors
ZD PLUS M 2-10 20POS 1.6MM
Description
General part information
- Series
40 Connector Header, Male Pins Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 464520 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Differential Pairs (Typical) | 20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Columns | 10 |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.098 in |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
