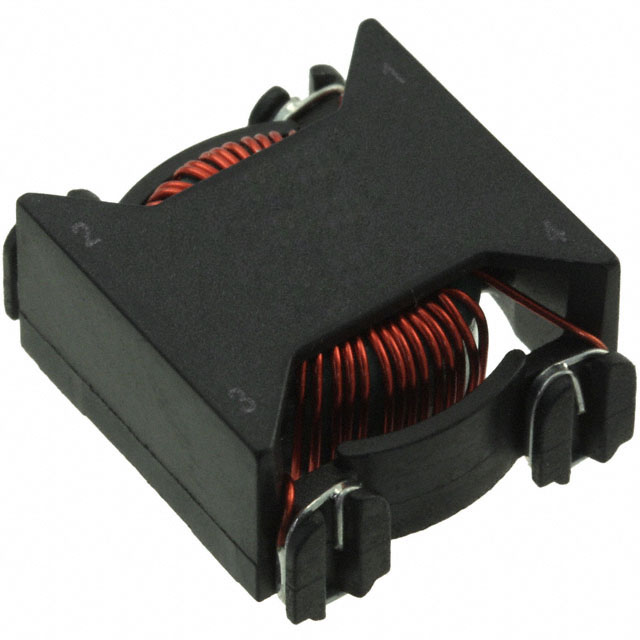

PE-53912
ObsoletePulse Electronics
CMC 2.5A 2LN SMD
PE-53912
ObsoletePulse Electronics
CMC 2.5A 2LN SMD
Description
General part information
PE-53912
2 Line Common Mode Choke Surface Mount 2.5A DCR 80mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-53912 |
|---|---|
| Current Rating (Max) | 2.5 A |
| DC Resistance (DCR) (Max) | 80 mOhm |
| Height (Max) | 0.39 in |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.77 in |
| Size / Dimension Width | 0.67 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
