XS8E1A1PAL2
ActiveSCHNEIDER ELECTRIC

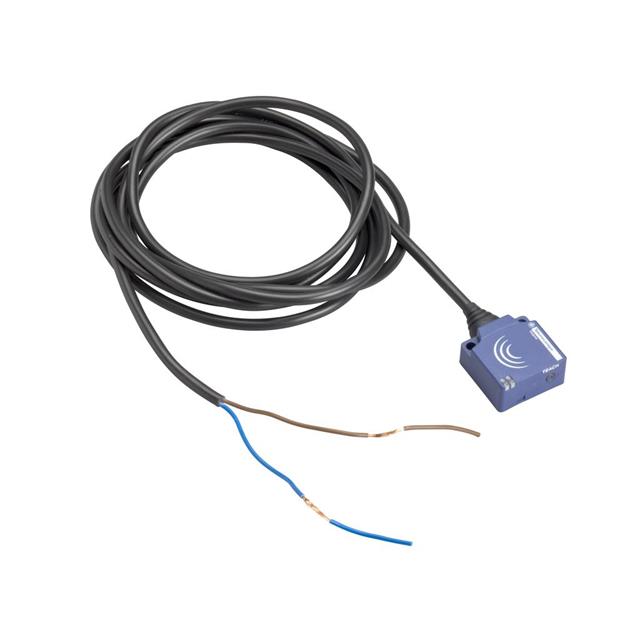

INDUCTIVE PROXIMITY SENSOR, OSISENSE XS, RECTANGULAR, 15 MM, SPST-NO, 12 TO 24 VDC, PRE-WIRED
XS8E1A1PAL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS, RECTANGULAR, 15 MM, SPST-NO, 12 TO 24 VDC, PRE-WIRED
Description
General part information
XS8E1A1PAL2
Inductive Proximity Sensor 0.394" (10mm) IP68 Module
Technical Specifications
Parameters and characteristics for this part
| Specification | XS8E1A1PAL2 |
|---|---|
| Indicator | No Indicator |
| Ingress Protection | IP68 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Module |
| Sensing Distance | 0.394 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
