PBS.2F.310.XLC

Active

LEMO

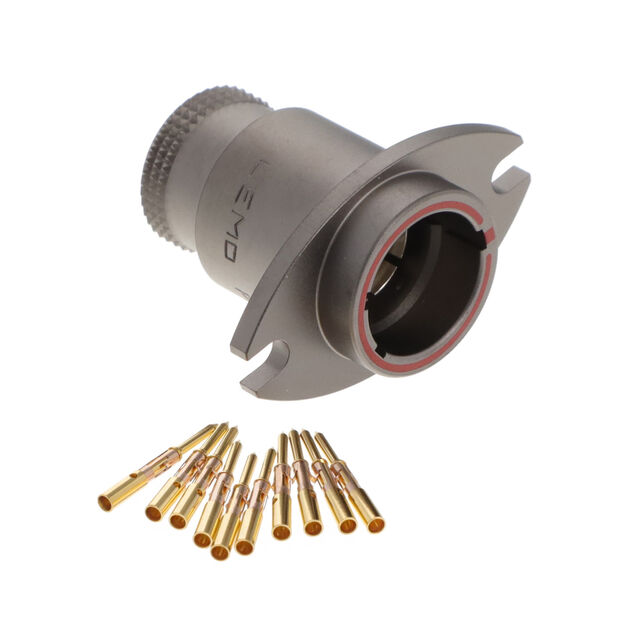

CONN RCPT MALE 10POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT MALE 10POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PBS.2F.310.XLC

Applications	Aerospace
Cable Opening [custom]	14 mm
Cable Opening [custom]	0.551 in
Color	Gray
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	10
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-15 °C
Orientation	S
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	310
Shielding	Shielded
Termination	Crimp

CONN RCPT MALE 10POS GOLD CRIMP

Part	Orientation	Color	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish - Mating	Mounting Feature	Primary Material	Connector Type	Termination	Shell Size - Insert	Insert Material	Shell Material	Ingress Protection	Shielding	Applications	Shell Finish	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)
LEMO PBS.2F.310.XLC	S	Gray	14 mm	0.551 in	10	Push-Pull	200 °C	-15 °C	UL94 V-0	Gold	Flange	Metal	Male Pins, Receptacle	Crimp	310	Polyetheretherketone (PEEK)	Aluminum Alloy	IP67 - Dust Tight, Waterproof	Shielded	Aerospace	Nickel	Brass	1 µm	39.4 µin	8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Male Pins Crimp
