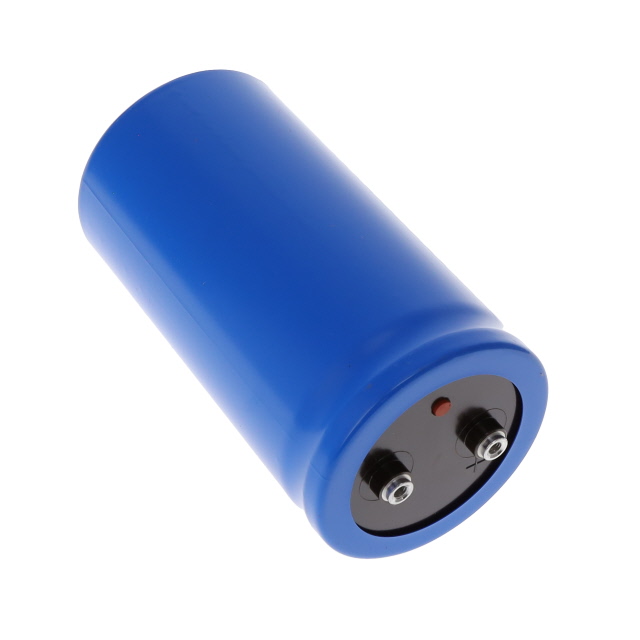

DCMC104M100DF2B
ActiveCornell Dubilier Knowles
CAP ALUM 100000UF 20% 100V SCREW
DCMC104M100DF2B
ActiveCornell Dubilier Knowles
CAP ALUM 100000UF 20% 100V SCREW
Description
General part information
DCMC104M100DF2B
100000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | DCMC104M100DF2B |
|---|---|
| Applications | General Purpose |
| Capacitance | 100000 µF |
| Height - Seated (Max) | 5.687 in |
| Lead Spacing | 1.25 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 3 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
