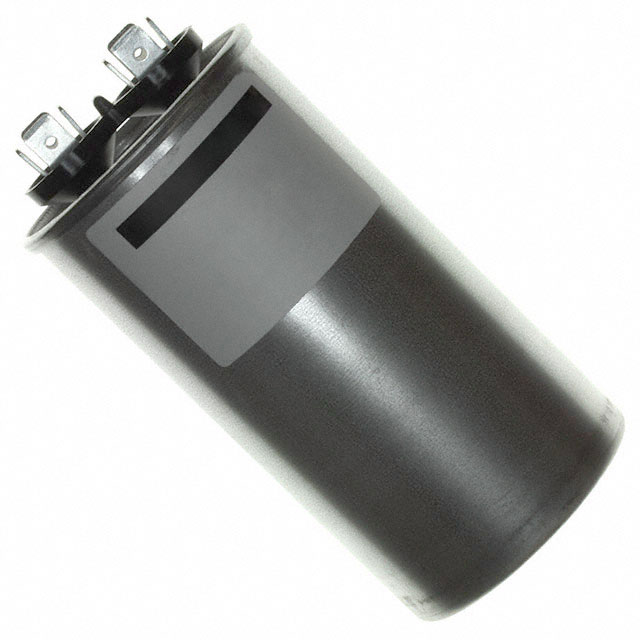

SFC44T20-10K291E-F
ActiveCornell Dubilier Knowles
CAP ARRAY 10UF/20UF 440V RADIAL
SFC44T20-10K291E-F
ActiveCornell Dubilier Knowles
CAP ARRAY 10UF/20UF 440V RADIAL
Description
General part information
SFC44T20-10K291E-F
10µF, 20µF Bussed Capacitor 2 Array 440 V Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | SFC44T20-10K291E-F |
|---|---|
| Applications | Motor Run |
| Capacitance (Value 1) | 10 µF |
| Capacitance (Value 2) | 20 µF |
| Circuit Type | Bussed |
| Dielectric Material | Metallized, Polypropylene (PP) Film |
| Height - Seated (Max) | 3.03 in |
| Mounting Type | Bracket, Chassis Mount, Requires Holder |
| Number of Capacitors | 2 |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 2.62 in |
| Tolerance | 10 % |
| Voltage - Rated | 440 V |
