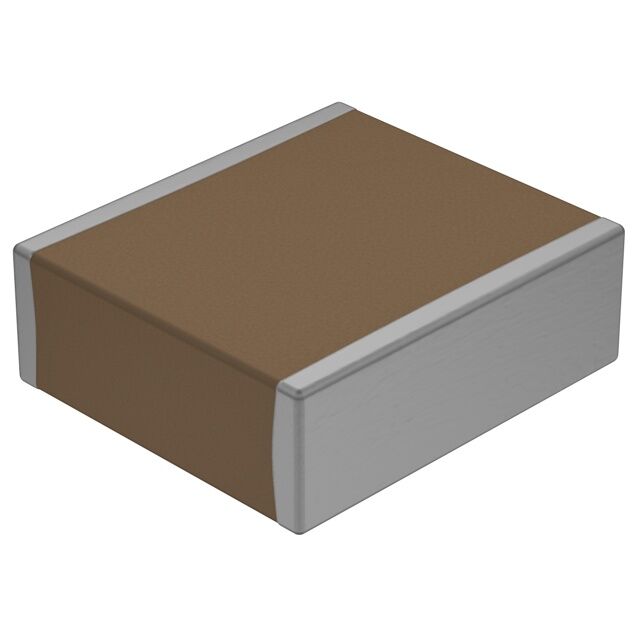

VJ2225Y474KXBAT

Active

Vishay General Semiconductor - Diodes Division

CAP CER 0.47UF 100V X7R 2225

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VJ2225Y474KXBAT

Active

Vishay General Semiconductor - Diodes Division

CAP CER 0.47UF 100V X7R 2225

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VJ2225Y474KXBAT

Applications	General Purpose
Capacitance	0.47 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	2225
Package / Case	5763 Metric
Size / Dimension [x]	5.59 mm
Size / Dimension [x]	0.22 in
Size / Dimension [y]	6.35 mm
Size / Dimension [y]	0.25 in
Temperature Coefficient	X7R
Thickness (Max) [Max]	2.18 mm
Thickness (Max) [Max]	0.086 in
Tolerance	10 %
Voltage - Rated	100 V

VJ2225 Series

...

Part	Voltage - Rated	Package / Case	Package / Case	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Features	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]
Vishay General Semiconductor - Diodes Division VJ2225A122JBLAT4X	630 V	2225	5763 Metric	5 %	2.18 mm	0.086 in	6.35 mm	0.25 in	0.226 in	5.74 mm	C0G NP0	Open Mode Soft Termination	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	-55 °C	125 °C	1200 pF
Vishay General Semiconductor - Diodes Division VJ2225Y153KBFAT4X	2000 V	2225	5763 Metric	10 %	2.18 mm	0.086 in	6.35 mm	0.25 in	0.226 in	5.74 mm	X7R	High Voltage Open Mode Soft Termination	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	-55 °C	125 °C	15000 pF	2 kV
Vishay General Semiconductor - Diodes Division VJ2225Y273KBFAT4X	2000 V	2225	5763 Metric	10 %	2.18 mm	0.086 in	6.35 mm	0.25 in	0.226 in	5.74 mm	X7R	High Voltage Open Mode Soft Termination	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	-55 °C	125 °C	0.027 µF	2 kV
Vishay General Semiconductor - Diodes Division VJ2225Y273JBFAT4X	2000 V	2225	5763 Metric	5 %	2.18 mm	0.086 in	6.35 mm	0.25 in	0.226 in	5.74 mm	X7R	High Voltage Open Mode Soft Termination	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	-55 °C	125 °C	0.027 µF	2 kV
Vishay General Semiconductor - Diodes Division VJ2225Y473MXFAT4X	2000 V	2225	5763 Metric	20 %	2.18 mm	0.086 in	6.35 mm			5.59 mm	X7R	High Voltage Open Mode	MLCC Surface Mount	SMPS Filtering	-55 °C	125 °C		2 kV	0.22 in	0.25 in
Vishay General Semiconductor - Diodes Division VJ2225Y274KXEAT	500 V	2225	5763 Metric	10 %	2.18 mm	0.086 in	6.35 mm			5.59 mm	X7R		MLCC Surface Mount	General Purpose	-55 °C	150 °C	0.27 µF		0.22 in	0.25 in
Vishay General Semiconductor - Diodes Division VJ2225A122JBEAT4X	500 V	2225	5763 Metric	5 %	2.18 mm	0.086 in	6.35 mm	0.25 in	0.226 in	5.74 mm	C0G NP0	Open Mode Soft Termination	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	-55 °C	125 °C	1200 pF
Vishay General Semiconductor - Diodes Division VJ2225A122JBCAT4X	200 V	2225	5763 Metric	5 %	2.18 mm	0.086 in	6.35 mm	0.25 in	0.226 in	5.74 mm	C0G NP0	Open Mode Soft Termination	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	-55 °C	125 °C	1200 pF
Vishay General Semiconductor - Diodes Division VJ2225A122KBAAT4X	50 VDC	2225	5763 Metric	10 %	2.18 mm	0.086 in	6.35 mm	0.25 in	0.226 in	5.74 mm	C0G NP0	Open Mode Soft Termination	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	-55 °C	125 °C	1200 pF
Vishay General Semiconductor - Diodes Division VJ2225A821KBGAT4X	1000 V	2225	5763 Metric	10 %	2.18 mm	0.086 in	6.35 mm	0.25 in	0.226 in	5.74 mm	C0G NP0	High Voltage Open Mode Soft Termination	MLCC Surface Mount	Boardflex Sensitive SMPS Filtering	-55 °C	125 °C	820 pF	1 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.24

Description

General part information

VJ2225 Series

0.47 µF ±10% 100V Ceramic Capacitor X7R 2225 (5763 Metric)
