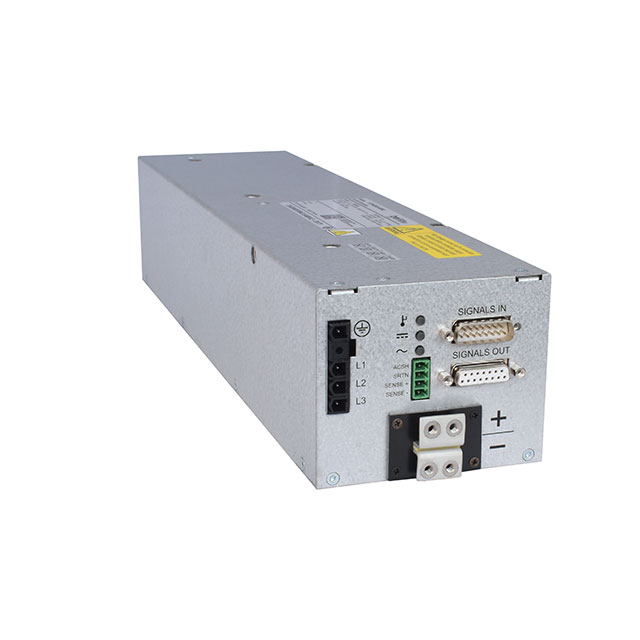

TCP4000-H090

Active

Bel Power Solutions

AC/DC CONVERTER 90V 4050W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 90V 4050W

Technical Specifications

Parameters and characteristics for this part

Specification	TCP4000-H090

Applications	ITE (Commercial)
Current - Output 1	45 A
Efficiency	94 %
Features	Adjustable Output, PFC, IP20, Load Sharing
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	4050 W
Size / Dimension [x]	400.6 mm
Size / Dimension [x]	15.77 in
Size / Dimension [y]	103 mm
Size / Dimension [y]	4.06 in
Size / Dimension [z]	3.33 "
Size / Dimension [z]	84.6 mm
Type	Front End
Voltage - Input [Max]	480 VAC, 277 VAC
Voltage - Input [Min]	200 VAC, 115 VAC
Voltage - Isolation	1.5 kV
Voltage - Output 1	90 V

AC/DC CONVERTER 90V 4050W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Power (Watts)	Number of Outputs	Applications	Voltage - Output 1	Mounting Type	Efficiency	Voltage - Isolation	Features	Current - Output 1
Bel Power Solutions TCP4000-H090	277 VAC, 480 VAC	115 VAC, 200 VAC	70 °C	0 °C	103 mm	400.6 mm	3.33 "	15.77 in	4.06 in	84.6 mm	Front End	4050 W	1	ITE (Commercial)	90 V	Rack Mount	94 %	1.5 kV	Adjustable Output, IP20, Load Sharing, PFC	45 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 90V 115 ~ 277 VAC, 200 ~ 480 VAC Input
