031-15

Active

AMPHENOL RF

CONN BNC JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	031-15

Body Finish	Nickel
Body Material	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Contact, 1 Washer, 1 Connector, 1 Clamp, 1 Insulator, 1 Braid Clamp
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

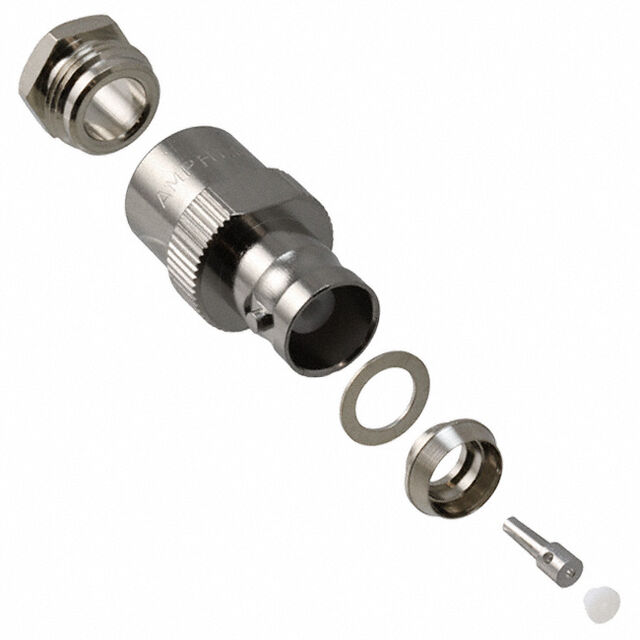

CONN BNC JACK STR 50 OHM SOLDER

Part	Housing Color	Includes	Fastening Type	Body Finish	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Body Material	Mating Cycles	Voltage Rating	Impedance	Insertion Loss	Dielectric Material	Center Contact Plating	Connector Style	Center Contact Material	Number of Ports	Cable Group	Frequency - Max [Max]	Connector Type
AMPHENOL RF 031-15	Silver	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Insulator, 1 Washer	Bayonet Lock	Nickel	Clamp	-65 ░C	165 °C	Free Hanging (In-Line)	Solder	Brass	500	500 V	50 Ohms	0.2 dB	Polytetrafluoroethylene (PTFE)	Silver	BNC	Beryllium Copper	1	140, 210, 59B, 62, 8263, 8279, 9209, Belden 8241, RG-59	4 GHz	Female Socket, Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.93

General part information

BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
