PK10-100S-S-DA

Active

80000920076 PK10-100S-S-DA =PAK10 CONNECTOR/ROHS

Search across all available documentation for this part.

Active

80000920076 PK10-100S-S-DA =PAK10 CONNECTOR/ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

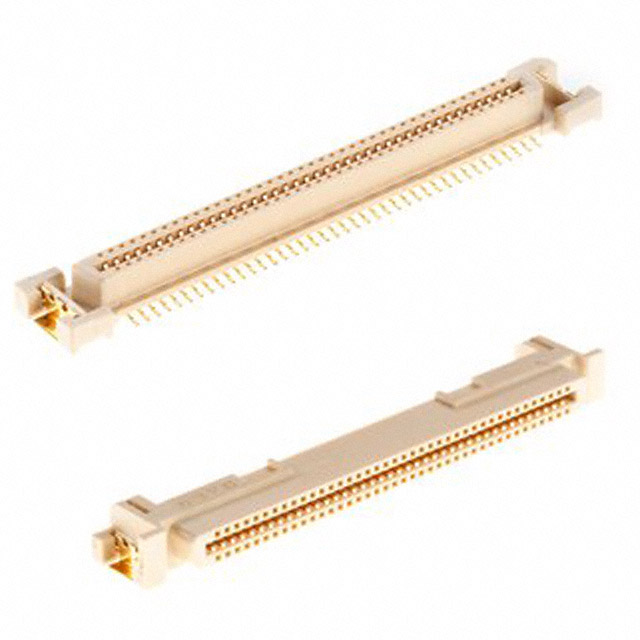

100 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PK10-100S-S-DA	PK10 Series

Connector Type	Socket, Outer Shroud Contacts	Socket, Outer Shroud Contacts
Contact Finish	Gold	Gold
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board	-	0.154 in
Height Above Board	-	3.9 mm
Height Above Board [z]	4 mm	4 - 4.8 mm
Height Above Board [z]	0.157 "	0.157 - 0.189 in
Mated Stacking Heights	5 mm	5 mm
Mounting Type	Surface Mount	Surface Mount, Right Angle, Surface Mount
Number of Positions	100	50 - 100
Number of Rows	2	2
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm

1MM 2 80P SURFACE MOUNT SMD,P=1MM,SURFACE MOUNT，RIGHT ANGLE BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Part	Features	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Number of Rows	Contact Finish	Height Above Board	Height Above Board	Connector Type	Mated Stacking Heights
3M PK10-080P-R-DA	Board Guide, Solder Retention	0.189 in	4.8 mm	0.039 in	1 mm	Surface Mount, Right Angle	80	2	Gold
3M PK10-050PM-S-DA	Board Guide, Solder Retention			0.039 in	1 mm	Surface Mount	50	2	Gold	0.154 in	3.9 mm
3M PK10-080S-R-TGF	Board Guide, Solder Retention	0.189 in	4.8 mm	0.039 in	1 mm	Surface Mount, Right Angle	80	2	Gold			Outer Shroud Contacts, Socket
3M PK10-050S-R-DA	Board Guide, Solder Retention	0.189 in	4.8 mm	0.039 in	1 mm	Surface Mount, Right Angle	50	2	Gold			Outer Shroud Contacts, Socket
3M PK10-050P-R-DA	Board Guide, Solder Retention	0.189 in	4.8 mm	0.039 in	1 mm	Surface Mount, Right Angle	50	2	Gold
3M PK10-080S-R-DA	Board Guide, Solder Retention	0.189 in	4.8 mm	0.039 in	1 mm	Surface Mount, Right Angle	80	2	Gold			Outer Shroud Contacts, Socket
3M PK10-100S-S-DA	Board Guide, Solder Retention	0.157 "	4 mm	0.039 in	1 mm	Surface Mount	100	2	Gold			Outer Shroud Contacts, Socket	5 mm
