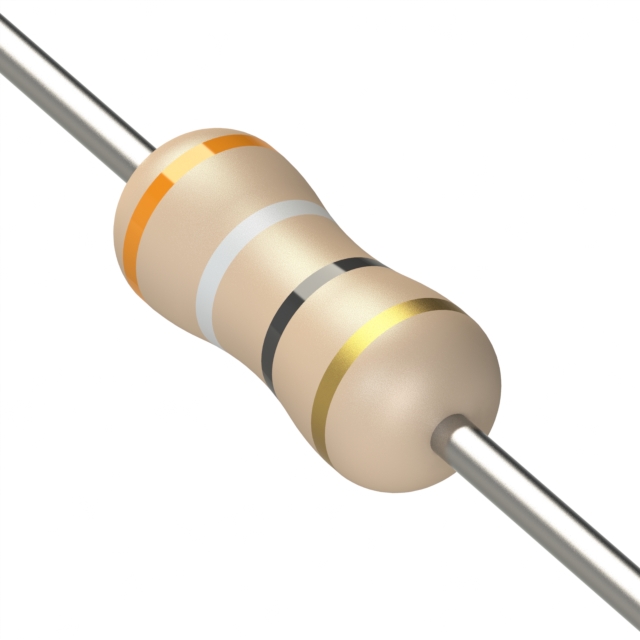

CFS1/2CT52R390J

Active

KOA Speer Electronics, Inc.

RES 39 OHM 5% 1/2W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFS1/2CT52R390J

Active

KOA Speer Electronics, Inc.

RES 39 OHM 5% 1/2W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFS1/2CT52R390J

Composition	Carbon Film
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	39 Ohms
Size / Dimension [diameter]	2.85 mm
Size / Dimension [diameter]	0.112 in
Size / Dimension [x]	6.3 mm
Size / Dimension [x]	0.248 in
Supplier Device Package	Axial
Temperature Coefficient [Max]	350 ppm/°C
Temperature Coefficient [Min]	-450 ppm/°C
Tolerance	5 %

CFS1/2 Series

Part	Supplier Device Package	Power (Watts)	Power (Watts)	Number of Terminations	Composition	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Resistance	Package / Case	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]
KOA Speer Electronics, Inc. CFS1/2CT52R5R1J	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	5.1 Ohms	Axial	350 ppm/°C	-450 ppm/°C	5 %	155 °C	-55 °C
KOA Speer Electronics, Inc. CFS1/2C102J	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	1000 Ohms	Axial	350 ppm/°C	-450 ppm/°C	5 %	155 °C	-55 °C
KOA Speer Electronics, Inc. CFS1/2CT52R103J	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	10000 Ohms	Axial	350 ppm/°C	-450 ppm/°C	5 %	155 °C	-55 °C
KOA Speer Electronics, Inc. CFS1/2CT52R221J	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	220 Ohms	Axial	350 ppm/°C	-450 ppm/°C	5 %	155 °C	-55 °C
KOA Speer Electronics, Inc. CFS1/2CT52R681J	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	680 Ohms	Axial	350 ppm/°C	-450 ppm/°C	5 %	155 °C	-55 °C
KOA Speer Electronics, Inc. CFS1/2CT52R102G	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	1000 Ohms	Axial	350 ppm/°C	-450 ppm/°C	2 %	155 °C	-55 °C
KOA Speer Electronics, Inc. CFS1/2CT52R431J	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	430 Ohms	Axial	350 ppm/°C	-450 ppm/°C	5 %	155 °C	-55 °C
KOA Speer Electronics, Inc. CFS1/2CT52R392J	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	3.9 kOhms	Axial	350 ppm/°C	-450 ppm/°C	5 %	155 °C	-55 °C
KOA Speer Electronics, Inc. CFS1/2C222J	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	2200 Ohms	Axial	350 ppm/°C	-450 ppm/°C	5 %	155 °C	-55 °C
KOA Speer Electronics, Inc. CFS1/2CT52R561J	Axial	0.5 W	0.5 W	2	Carbon Film	2.85 mm	6.3 mm	0.112 in	0.248 in	560 Ohms	Axial	350 ppm/°C	-450 ppm/°C	5 %	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.05

Description

General part information

CFS1/2 Series

39 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film

Documents

Technical documentation and resources
