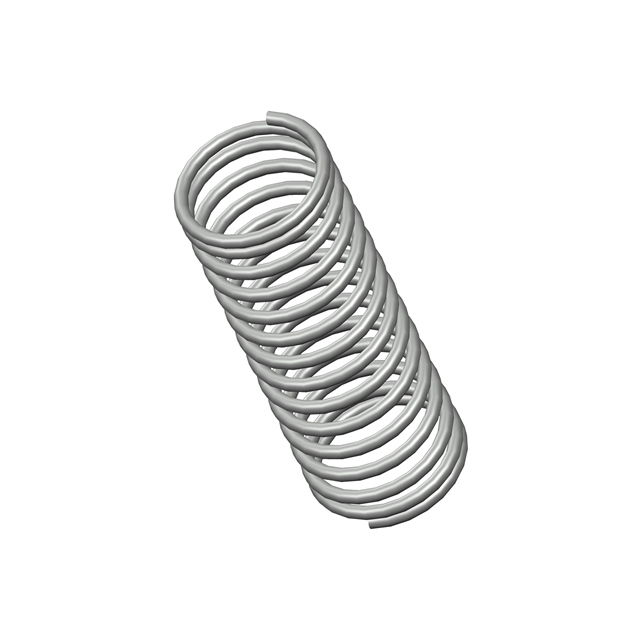

10617CS
ActiveCentury Spring Corp
COMP O= .640,L= 1.81,W= .055
10617CS
ActiveCentury Spring Corp
COMP O= .640,L= 1.81,W= .055
Description
General part information
10617CS
COMP O= .640,L= 1.81,W= .055
Technical Specifications
Parameters and characteristics for this part
| Specification | 10617CS |
|---|---|
| Diameter - Inside | 0.53 in |
| Diameter - Outside | 0.64 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 1.81 in |
| Material | Spring Steel |
| Rate (lbs/in) | 5.3 lbs/in |
| Type | Compression |
| Wire Diameter | 0.055 in |
