TDG1026A-8C
ActivePasternack
PANEL MNT COUPLER 8X8 STRAIGHT
TDG1026A-8C
ActivePasternack
PANEL MNT COUPLER 8X8 STRAIGHT
Description
General part information
TDG1026A-8C

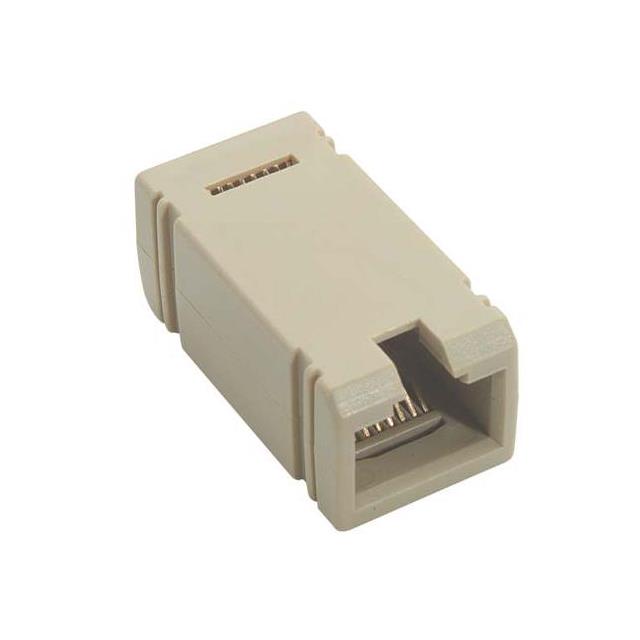

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | TDG1026A-8C |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | 8p8c (RJ45), Jack |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Housing Material | ABS, Acrylonitrile Butadiene Styrene |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Shielding | Unshielded |
| Type | Coupler |
