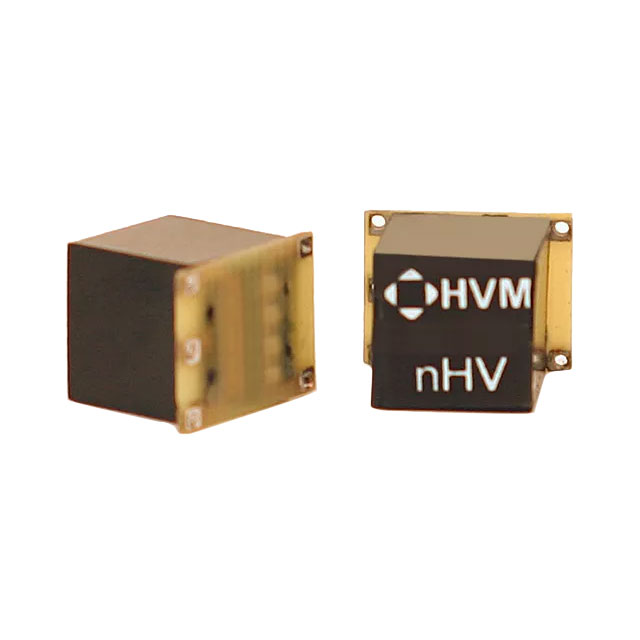

NHV0501
ActiveHVM Technology, Inc.
DC DC CONVERTER 100V 100MW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NHV0501
ActiveHVM Technology, Inc.
DC DC CONVERTER 100V 100MW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NHV0501 | NHV05 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 mA | 1 - 500 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 5-SMD Module | 5-SMD Module |
| Power (Watts) | 0.1 W | 0.1 W |
| Size / Dimension [x] | 0.45 in | 0.45 in |
| Size / Dimension [x] | 11.4 mm | 11.4 mm |
| Size / Dimension [y] | 0.35 " | 0.35 " |
| Size / Dimension [y] | 8.9 mm | 8.9 mm |
| Size / Dimension [z] | 0.37 in | 0.37 in |
| Size / Dimension [z] | 9.4 mm | 9.4 mm |
| Type | High Voltage - Non-Isolated Module | High Voltage - Non-Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output 1 | 100 V | -1200 - 1200 V |
NHV05 Series
DC DC CONVERTER -1200V 100MW
| Part | Number of Outputs | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Applications | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Package / Case | Voltage - Input (Min) [Min] | Power (Watts) | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HVM Technology, Inc. NHV0512N | 1 | 0.37 in | 9.4 mm | 0.45 in | 0.35 " | 11.4 mm | 8.9 mm | ITE (Commercial) | -1200 V | 70 °C | -55 °C | 5.5 V | 83 µA | 5-SMD Module | 4.5 V | 0.1 W | Surface Mount | High Voltage - Non-Isolated Module |
HVM Technology, Inc. NHV0512 | 1 | 0.37 in | 9.4 mm | 0.45 in | 0.35 " | 11.4 mm | 8.9 mm | ITE (Commercial) | 1200 V | 70 °C | -55 °C | 5.5 V | 83 µA | 5-SMD Module | 4.5 V | 0.1 W | Surface Mount | High Voltage - Non-Isolated Module |
HVM Technology, Inc. NHV0502 | 1 | 0.37 in | 9.4 mm | 0.45 in | 0.35 " | 11.4 mm | 8.9 mm | ITE (Commercial) | 200 V | 70 °C | -55 °C | 5.5 V | 500 µA | 5-SMD Module | 4.5 V | 0.1 W | Surface Mount | High Voltage - Non-Isolated Module |
HVM Technology, Inc. NHV0505 | 1 | 0.37 in | 9.4 mm | 0.45 in | 0.35 " | 11.4 mm | 8.9 mm | ITE (Commercial) | 500 V | 70 °C | -55 °C | 5.5 V | 200 µA | 5-SMD Module | 4.5 V | 0.1 W | Surface Mount | High Voltage - Non-Isolated Module |
HVM Technology, Inc. NHV0505N | 1 | 0.37 in | 9.4 mm | 0.45 in | 0.35 " | 11.4 mm | 8.9 mm | ITE (Commercial) | -500 V | 70 °C | -55 °C | 5.5 V | 200 µA | 5-SMD Module | 4.5 V | 0.1 W | Surface Mount | High Voltage - Non-Isolated Module |
HVM Technology, Inc. NHV0510N | 1 | 0.37 in | 9.4 mm | 0.45 in | 0.35 " | 11.4 mm | 8.9 mm | ITE (Commercial) | -1000 V | 70 °C | -55 °C | 5.5 V | 100 µA | 5-SMD Module | 4.5 V | 0.1 W | Surface Mount | High Voltage - Non-Isolated Module |
HVM Technology, Inc. NHV0502N | 1 | 0.37 in | 9.4 mm | 0.45 in | 0.35 " | 11.4 mm | 8.9 mm | ITE (Commercial) | -200 V | 70 °C | -55 °C | 5.5 V | 500 µA | 5-SMD Module | 4.5 V | 0.1 W | Surface Mount | High Voltage - Non-Isolated Module |
HVM Technology, Inc. NHV0510 | 1 | 0.37 in | 9.4 mm | 0.45 in | 0.35 " | 11.4 mm | 8.9 mm | ITE (Commercial) | 1000 V | 70 °C | -55 °C | 5.5 V | 100 µA | 5-SMD Module | 4.5 V | 0.1 W | Surface Mount | High Voltage - Non-Isolated Module |
HVM Technology, Inc. NHV0501 | 1 | 0.37 in | 9.4 mm | 0.45 in | 0.35 " | 11.4 mm | 8.9 mm | ITE (Commercial) | 100 V | 70 °C | -55 °C | 5.5 V | 1 mA | 5-SMD Module | 4.5 V | 0.1 W | Surface Mount | High Voltage - Non-Isolated Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 218.15 | |
Description
General part information
NHV05 Series
High Voltage - Non-Isolated Module DC DC Converter 1 Output 100V 1mA 4.5V - 5.5V Input
