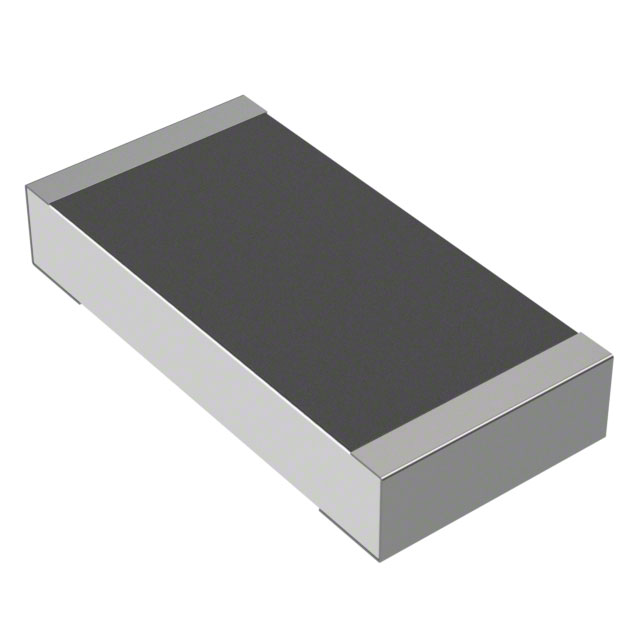

CHP2512AJW-270ELF
ActiveBourns Inc.
RESHIGHPOWERA 2512 27R 5% 3W TC1
CHP2512AJW-270ELF
ActiveBourns Inc.
RESHIGHPOWERA 2512 27R 5% 3W TC1
Description
General part information
CHP2512AJW-270ELF
27 Ohms ±5% 3W Chip Resistor 2512 (6432 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | CHP2512AJW-270ELF |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Anti-Sulfur, Pulse Withstanding, Moisture Resistant |
| Height - Seated (Max) | 0.051 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2512 (6432 Metric), 2512 (6332 Metric) |
| Package Name | 2512 |
| Power (Watts) | 3 W |
| Ratings | AEC-Q200 |
| Resistance | 27 Ohm |
| Size / Dimension Length | 0.252 in |
| Size / Dimension Width | 0.122 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
