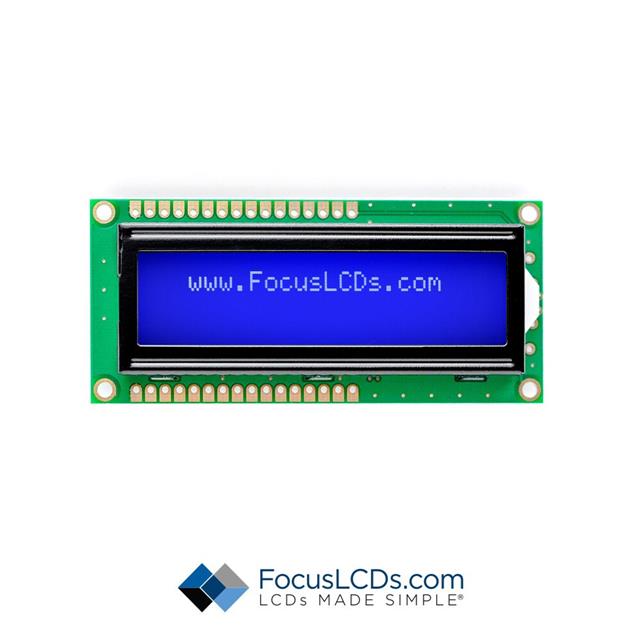

C162A-BW-LW63
ActiveFocus LCDs
16X2 STN BLUE CHARACTER LCD
C162A-BW-LW63
ActiveFocus LCDs
16X2 STN BLUE CHARACTER LCD
Description
General part information
C162A-BW-LW63
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 80.00mm x 36.00mm x 13.50mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C162A-BW-LW63 |
|---|---|
| Background Color | Blue |
| Backlight Color | White |
| Backlight Type | LED |
| Character Height | 5.23 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 3 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066U |
| Display Columns | 16 |
| Display Mode | Transmissive |
| Display Rows | 2 |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size Height | 0.56 mm |
| Dot Size Width | 0.61 mm |
| Interface | Parallel |
| Number of Characters | 32 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13.5 mm |
| Outline Length | 80 mm |
| Outline Width | 36 mm |
| Text Color | White |
| Viewing Area Length | 64.5 mm |
| Viewing Area Width | 16.4 mm |
| Voltage - Supply | 3.3 V |
