Description
General part information
DPHE003

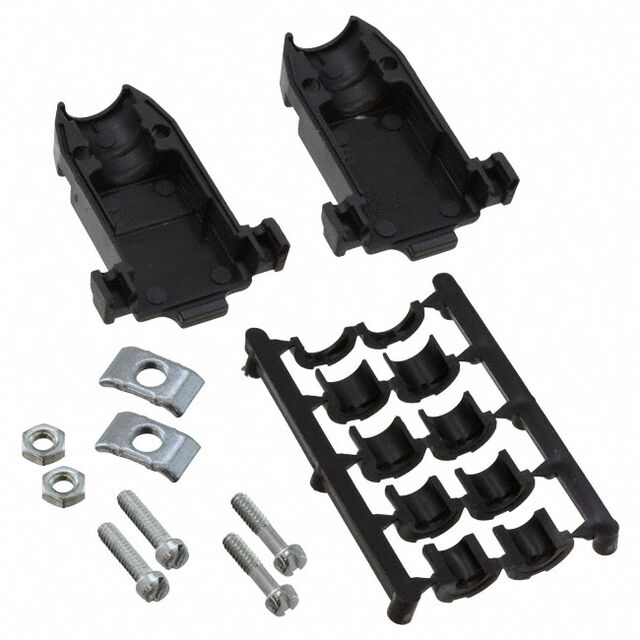

9 Position Two Piece Backshell Connector Black 180° Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | DPHE003 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit Angle | 180 ° |
| Cable Type | Round |
| Color | Black |
| Compatible D-Sub Size | 9pos, HD15pos |
| Compatible Shell Size | E |
| Features | Mating Screws 4-40 |
| Hardware | Grommets, Assembly Hardware |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Number of Positions | 9 |
| Primary Material | Plastic |
| Shielding | Unshielded |
