Description
General part information
1121881

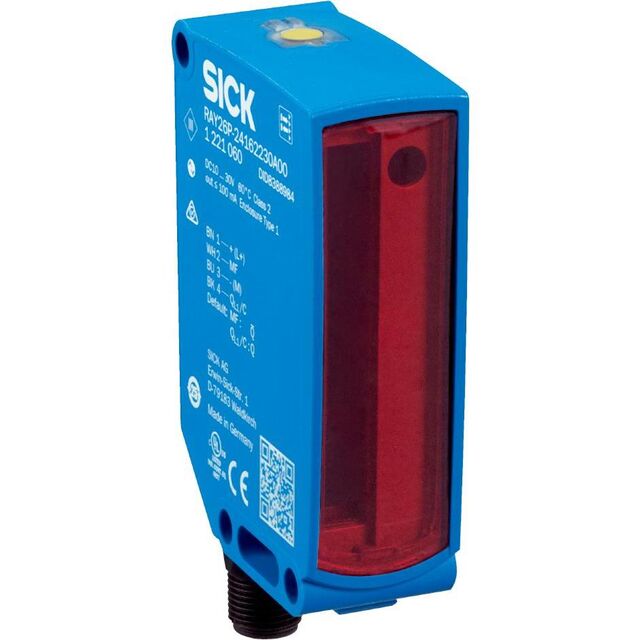

Retroreflective Optical Sensor 0" ~ 118.110" (0m ~ 3m) PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 1121881 |
|---|---|
| Adjustment Type | Teaching Method |
| Cable Length | 10.63 in |
| Connection Method | M12, Cable with Connector |
| Ingress Protection | IP67, IP66 |
| Light Source | Red |
| Light Source Wavelength (Red) | 635 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Response Time | 3 ms |
| Sensing Distance Maximum | 118.11 " |
| Sensing Distance Minimum | 0 cm |
| Sensing Method | Retroreflective |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
