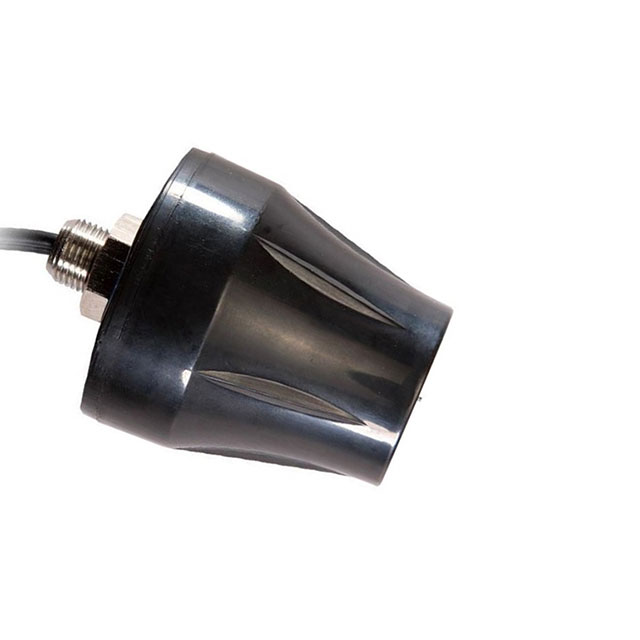

RDM-MBF5-A-5048-1M-X-001

Active

Raltron Electronics

RF ANT 850MHZ/868MHZ DOME RP-SMA

Search across all available documentation for this part.

Active

Raltron Electronics

RF ANT 850MHZ/868MHZ DOME RP-SMA

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 850/900MHZ DOME SMA MALE

Part	Frequency Group	Gain	RF Family/Standard	VSWR	VSWR	VSWR	Frequency Range [Max]	Frequency Range	Frequency Range [Min]	Termination	Frequency (Center/Band)	Mounting Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Applications	Ingress Protection	Number of Bands	Antenna Type	VSWR [Max]	VSWR [Min]	Height (Max) [Max]	Height (Max) [Max]
Raltron Electronics RDM-MBF5-A-4614-O-X-001	Wide Band	0 dBi, 2 dBic	Cellular, Navigation	1.5	2	2.5	2.17 GHz, 960 MHz	1.575 GHz	1.71 GHz, 824 MHz	IPEX (2)	1.575 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 850 MHz, 900 MHz	Screw	0.642 in	16.3 mm	Cellular, GPS, GSM, LNA	IP66, IP67	2
Raltron Electronics RDM-MBF5-A-5048-1M-X-001	Wide Band	2 dBic	Cellular, Navigation				2.17 GHz, 960 MHz	1.575 GHz	1.71 GHz, 824 MHz	RP-SMA Male (2)	1.575 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 850 MHz, 868 MHz, 900 MHz, 915 MHz	Screw			Cellular, GPS, GSM, LNA	IP66, IP67	2	Dome	2	1.5	48 mm	1.889 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Cellular, GSM, GPS, LNA Dome RP-SMA Male (2) Screw
