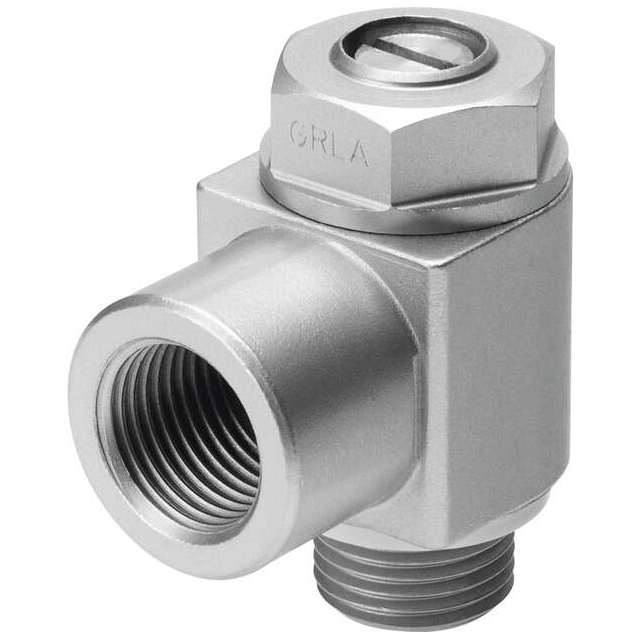

GRLA-1/8-NPT-B
ActiveFesto Corporation
ONE-WAY FLOW CONTROL VALVE
GRLA-1/8-NPT-B
ActiveFesto Corporation
ONE-WAY FLOW CONTROL VALVE
Description
General part information
GRLA-1/8-NPT-B
One-Way Flow Restrictor, Adjustable Sub-Base Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GRLA-1/8-NPT-B |
|---|---|
| Connection Method | Threaded |
| Fluid Type | Inert Gas, Air, Liquid |
| Function | One-Way |
| Mounting Type | Sub-Base Mount |
| Operating Pressure (Max) | 145 PSI |
| Operating Pressure (Min) | 4 PSI |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Thread Size | 1.125 in |
| Thread Standard | NPT |
| Type | Adjustable, Flow Restrictor |
