1060183-1

Active

TE Connectivity AMP Connectors

CONN SMC PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMC PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1060183-1

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	6 pcs - 1 Connector, 1 Clamp, 1 End Cap, 1 Ferrule, 1 Spacer, 1 Washer
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN SMC PLUG R/A 50 OHM SOLDER

Part	Center Contact Plating	Dielectric Material	Connector Type	Insertion Loss	Connector Style	Includes	Contact Termination	Mating Cycles	Shield Termination	Housing Color	Voltage Rating	Center Contact Material	Cable Group	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Body Finish	Number of Ports	Frequency - Max [Max]	Impedance
TE Connectivity AMP Connectors 1060183-1	Gold	Polytetrafluoroethylene (PTFE)	Female Socket, Plug	0.5 dB	SMC	6 pcs - 1 Connector, 1 Clamp, 1 End Cap, 1 Ferrule, 1 Spacer, 1 Washer	Solder	500	Clamp	Gold	335 V	Beryllium Copper	188, 316, RG-174	Free Hanging (In-Line), Right Angle	-65 ░C	85 °C	Brass	Gold	1	10 GHz	50 Ohms

General part information

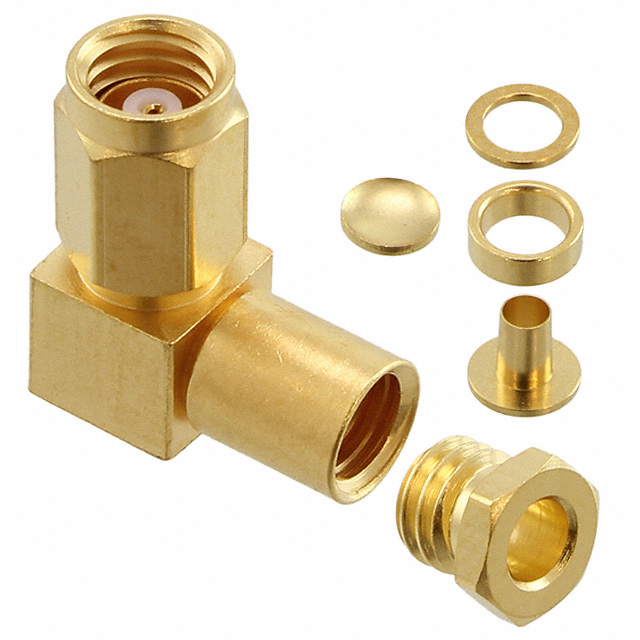

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
