RSB5-50-S-D1MU-LP-C
ActiveLoadstar Sensors

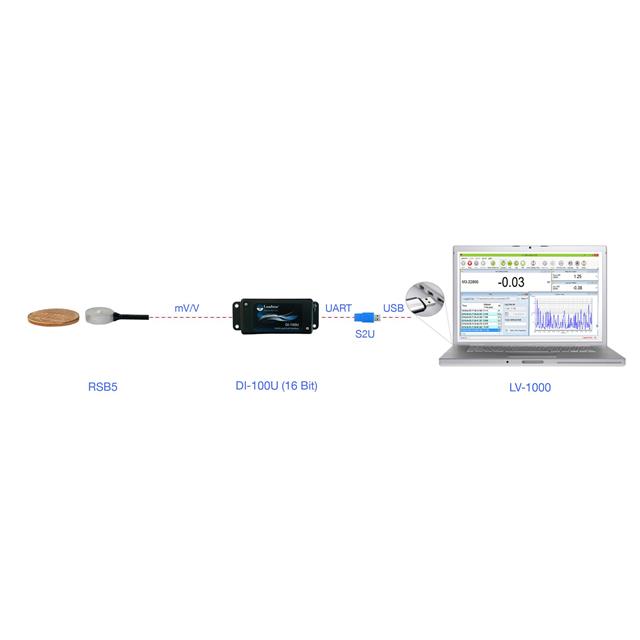

50LB MINI USB KIT COMPRESSION
RSB5-50-S-D1MU-LP-C
ActiveLoadstar Sensors
50LB MINI USB KIT COMPRESSION
Description
General part information
RSB5-50-S-D1MU-LP-C
Load Cell Force Sensor
Technical Specifications
Parameters and characteristics for this part
| Specification | RSB5-50-S-D1MU-LP-C |
|---|---|
| Accuracy | 0.5 % RH |
| Actuator Size | 10 mm |
| Actuator Style | Round |
| Actuator Type | Button |
| Compensated Temperature (Max) | 40 °C |
| Compensated Temperature (Min) | -10 °C |
| Includes | USB Interface, Software, Sensor, Calibration w/Certificate |
| Operating Force | 22.68 kgf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | USB |
| Sensor Type | Load Cell |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 5 V |
