MAL214252228E3
ActiveVishay Dale

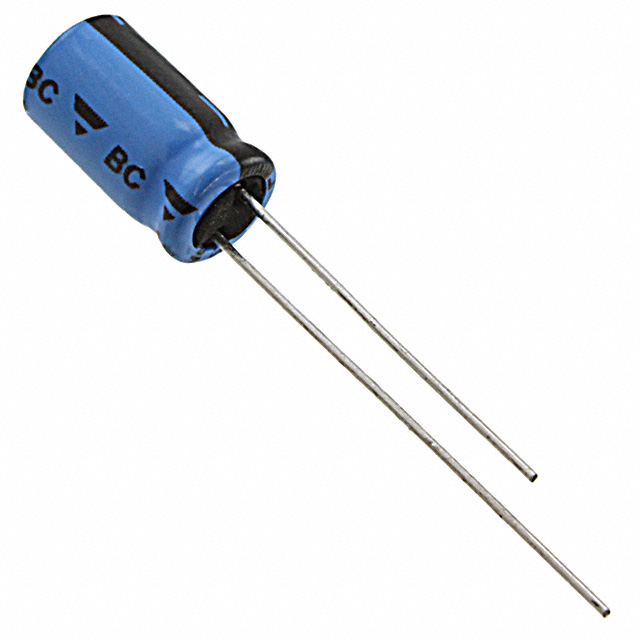

CAP ALUM 2.2UF 20% 200V RADIAL
MAL214252228E3
ActiveVishay Dale
CAP ALUM 2.2UF 20% 200V RADIAL
Description
General part information
MAL214252228E3
2.2 µF 200 V Aluminum Electrolytic Capacitors Radial, Can 2500 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL214252228E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 2.2 µF |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.098 in |
| Lifetime | 2500 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Ripple Current | 45 mA |
| Size / Dimension Diameter | 0.248 in |
| Tolerance | 20 % |
| Voltage - Rated | 200 VDC |
