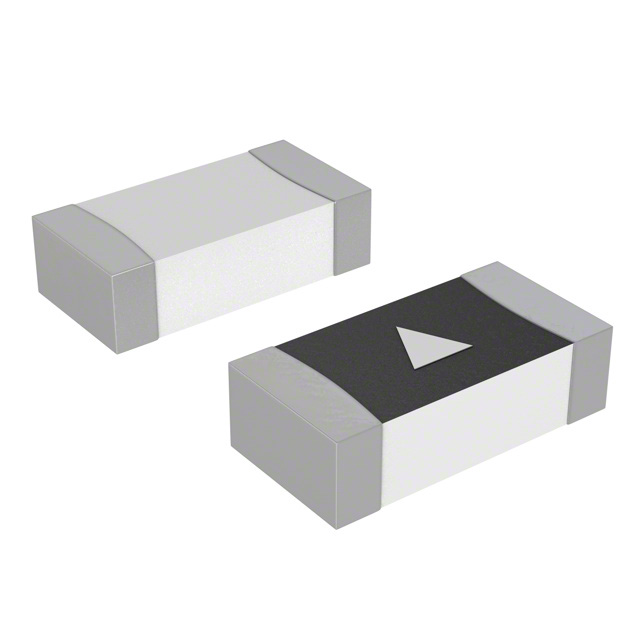

TR/3216LV375-R
ActiveEaton - Electronics Division
FUSE BRD MT 375MA 125VAC/VDC
TR/3216LV375-R
ActiveEaton - Electronics Division
FUSE BRD MT 375MA 125VAC/VDC
Description
General part information
TR/3216LV375-R
375 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TR/3216LV375-R |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity | 50 A |
| Current Rating | 375 mA |
| DC Cold Resistance | 1.8 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.001 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 1206 (3216 Metric) |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.035 in |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
