G4020S12B1-RSR
ActiveMechatronics Bearing Group

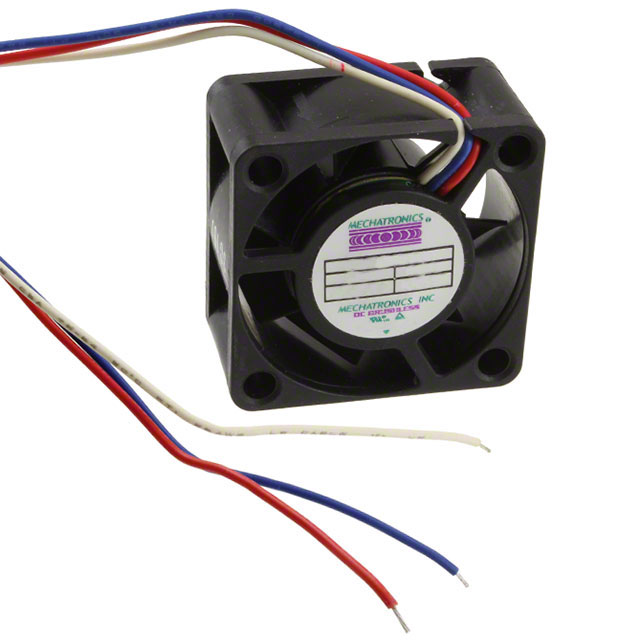

FAN AXIAL 40X20MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
G4020S12B1-RSR
ActiveMechatronics Bearing Group
FAN AXIAL 40X20MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G4020S12B1-RSR |
|---|---|
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 50 mA |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 21 dB(A) |
| RPM | 4000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 17.4 Pa |
| Static Pressure | 0.07 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 28.12 g |
| Weight | 0.062 lb |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 150 | $ 9.07 | |
Description
General part information
G4020S12B1-RSR
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 6.0 CFM (0.168mł/min) 3 Wire Leads
