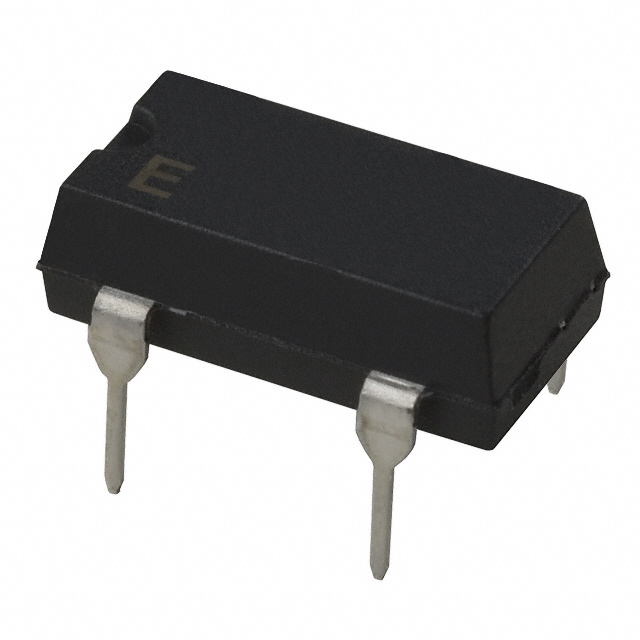

SG-531P 1.5440MC
1.544 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 8-DIP, 4 Leads (Half Size)
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-531P 1.5440MC |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 12 mA |
| Current - Supply (Max) | 23 mA |
| Frequency | 1.544 MHz |
| Frequency Stability | 100 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.209 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | CMOS, TTL |
| Package Leads | 4 Leads |
| Package Name | 8-DIP |
| Size / Dimension Length | 0.539 in |
| Size / Dimension Width | 0.26 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
