P2RSA-3753

Active

RF Industries

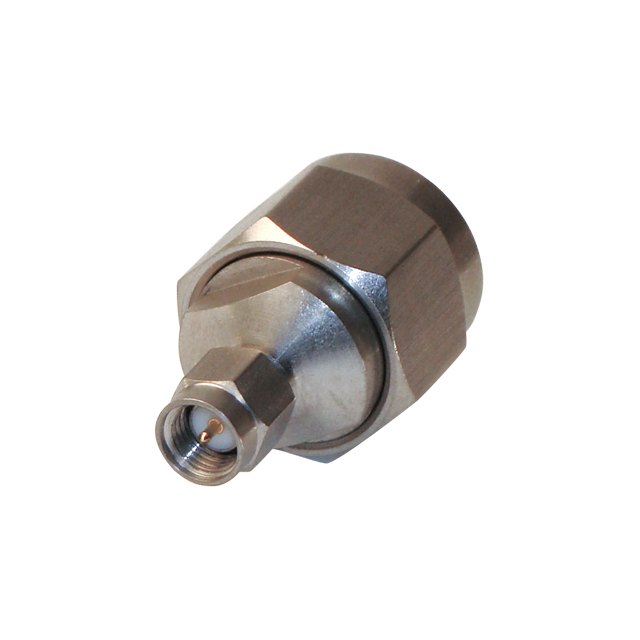

SMA MALE-N MALE; 18 GHZ

Search across all available documentation for this part.

Active

RF Industries

SMA MALE-N MALE; 18 GHZ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P2RSA-3753	P2RSA Series

Adapter Type	Plug to Plug	Jack to Jack, Plug to Plug, Plug to Jack
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Male to Male	Female to Female, Male to Male
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin	Female Socket, SMA Jack, SMA Plug, Male Pin
Convert To (Adapter End)	Male Pin, N Plug	Female Socket, N Jack, Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz	18 GHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.2 dB	0.2 dB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C	125 - 155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Style	Straight	Straight

SMA FEMALE-N FEMALE; 18 GHZ

Part	Convert From (Adapter End)	Center Gender	Center Contact Plating	Mounting Type	Center Contact Material	Impedance	Style	Adapter Type	Insertion Loss	Conversion Type	Convert To (Adapter End)	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Dielectric Material
RF Industries P2RSA-3777	Female Socket, SMA Jack	Female to Female	Gold	Free Hanging (In-Line)	Beryllium Copper	50 Ohms	Straight	Jack to Jack	0.2 dB	Between Series	Female Socket, N Jack	Stainless Steel	125 °C	-65 ░C	18 GHz	Polytetrafluoroethylene (PTFE)
RF Industries P2RSA-3753	SMA Plug, Male Pin	Male to Male	Gold	Free Hanging (In-Line)	Beryllium Copper	50 Ohms	Straight	Plug to Plug	0.2 dB	Between Series	Male Pin, N Plug	Stainless Steel	155 °C	-65 ░C	18 GHz	Polytetrafluoroethylene (PTFE)
RF Industries P2RSA-3778	Female Socket, SMA Jack		Gold	Free Hanging (In-Line)	Beryllium Copper	50 Ohms	Straight	Plug to Jack	0.2 dB	Between Series	Male Pin, N Plug	Stainless Steel	155 °C	-65 ░C	18 GHz	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To N Plug, Male Pin 50 Ohms
