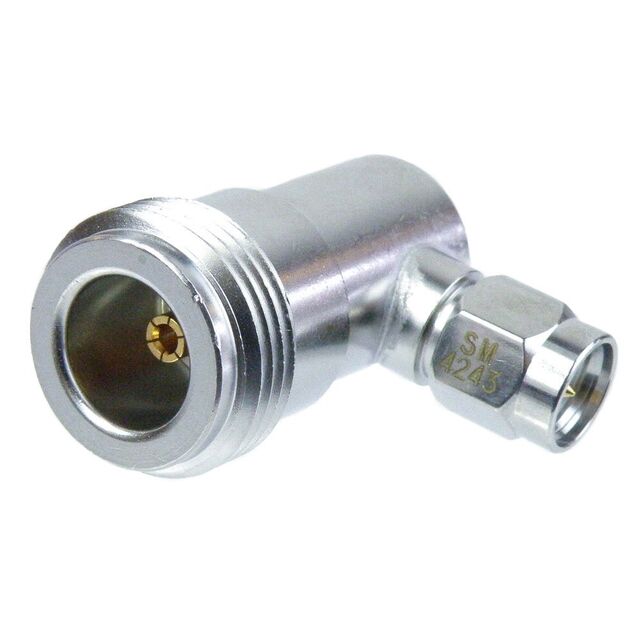

SM4243
ActiveFairview Microwave
ADAPT PLUG-JACK SMA 1.2 VSWR
SM4243
ActiveFairview Microwave
ADAPT PLUG-JACK SMA 1.2 VSWR
Description
General part information
SM4243
Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4243 |
|---|---|
| Adapter Series | SMA to N |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, SMA Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -45 °C |
| Style | Right Angle |
