2-966067-7

Active

TE Connectivity AMP Connectors

CONN FERRULE DIN 5AWG BLUE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN FERRULE DIN 5AWG BLUE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-966067-7	966067 Series

Color	Blue	White, Red, Gray, Black, Blue, Yellow
Insulation	Insulated	Insulated
Length - Overall [x]	28 mm	12 - 28 mm
Length - Pin [x]	18 mm	6 - 18 mm
Size	16 mm²	0.75 - 16 mm²
Size	5 AWG	17 AWG, 7, 5 AWG
Size	-	0.5 - 20 AWG
Size	-	1.00mm²
Size	-	10 AWG
Style	DIN	DIN
Type	Single Wire	Single Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN FERRULE DIN 20AWG WHITE

Part	Insulation	Size	Style	Length - Pin [x]	Type	Length - Overall [x]	Color	Size	Size	Size
TE Connectivity AMP Connectors 966067-3	Insulated	0.5 mm², 20 AWG	DIN	10 mm	Single Wire	16 mm	White
TE Connectivity AMP Connectors 1-966067-0	Insulated				Single Wire	16 mm	Red	17 AWG	1.00mm²
TE Connectivity AMP Connectors 966067-4	Insulated	18 AWG	DIN	6 mm	Single Wire	12 mm	Gray			0.75 mm²
TE Connectivity AMP Connectors 1-966067-2	Insulated	16 AWG	DIN	8 mm	Single Wire	14 mm	Black			1.5 mm˛
TE Connectivity AMP Connectors 2-966067-5	Insulated		DIN	18 mm	Single Wire	28 mm	Red	7		10 mm˛
TE Connectivity AMP Connectors 2-966067-7	Insulated		DIN	18 mm	Single Wire	28 mm	Blue	5 AWG		16 mm²
TE Connectivity AMP Connectors 1-966067-1	Insulated		DIN		Single Wire	18 mm	Red	17 AWG	1.00mm²
TE Connectivity AMP Connectors 966067-6	Insulated	18 AWG	DIN	10 mm	Single Wire	16 mm	Gray			0.75 mm²
TE Connectivity AMP Connectors 1-966067-3	Insulated	16 AWG	DIN	10 mm	Single Wire	16 mm	Black			1.5 mm˛
TE Connectivity AMP Connectors 1-966067-8	Insulated	14 AWG	DIN	18 mm	Single Wire	24 mm	Blue			2.5 mm˛

General part information

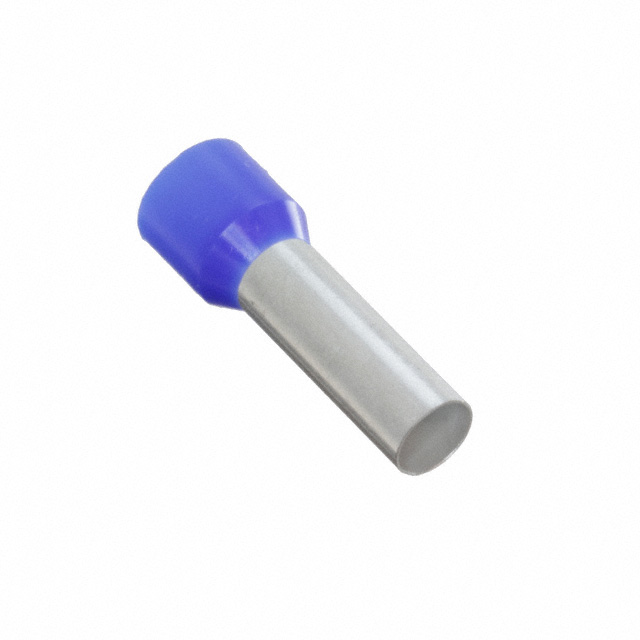

Blue Wire Ferrule Connector DIN 5 AWG (16.00mm²) Single Wire
