3PN1510B

Active

Staco Energy Products Company

VARIABLE, PLUG IN, 50HZ / 60HZ, 120V, 140V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

3PN1510B

Active

Staco Energy Products Company

VARIABLE, PLUG IN, 50HZ / 60HZ, 120V, 140V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3PN1510B	3PN1510 Series

Constant Current Load - Max	2.1kVA	2.1kVA
Constant Current Load - Max [Max]	15 A	15 A
Input Type	Plug, 6' Cord	Plug, 6' Cord
Output Type	Receptacle	Receptacle
Type	Bench	Bench
Voltage - Output	140 VAC	140 VAC
Voltage - Supply	120 VAC	120 VAC

3PN1510 Series

VARIABLE, PLUG IN, 50HZ / 60HZ, 120V, 140V

Part	Input Type	Voltage - Supply	Type	Constant Current Load - Max [Max]	Constant Current Load - Max	Output Type	Voltage - Output
Staco Energy Products Company 3PN1510BV	6' Cord, Plug	120 VAC	Bench	15 A	2.1kVA	Receptacle	140 VAC
Staco Energy Products Company 3PN1510BA	6' Cord, Plug	120 VAC	Bench	15 A	2.1kVA	Receptacle	140 VAC
Staco Energy Products Company 3PN1510B	6' Cord, Plug	120 VAC	Bench	15 A	2.1kVA	Receptacle	140 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1150.00
Newark	Each	1	$ 1268.36

Description

General part information

3PN1510 Series

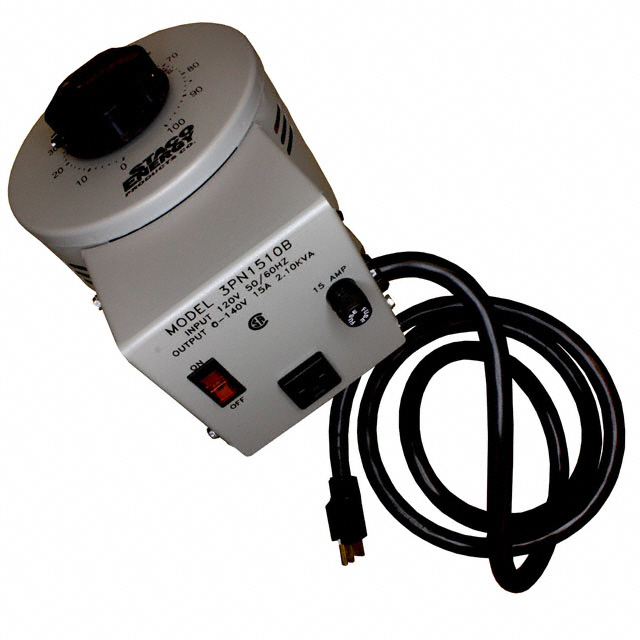

The 3PN1510B is a 15A 120V Variable Transformer with ventilated steel case, Cord & Plug Series, input line cord and plug, fused NEMA rated output receptacle and an illuminated on/off switch. They are connected for output voltage increase with a clockwise rotation and the dials are graduated from 0 to 100% of the voltage setting.
