878-22-005-00-011101
ActiveMill-Max Manufacturing Corp.
4MM PITCH MAGNETIC SPRING-LOADED
878-22-005-00-011101
ActiveMill-Max Manufacturing Corp.
4MM PITCH MAGNETIC SPRING-LOADED
Description
General part information
878-22-005-00-011101

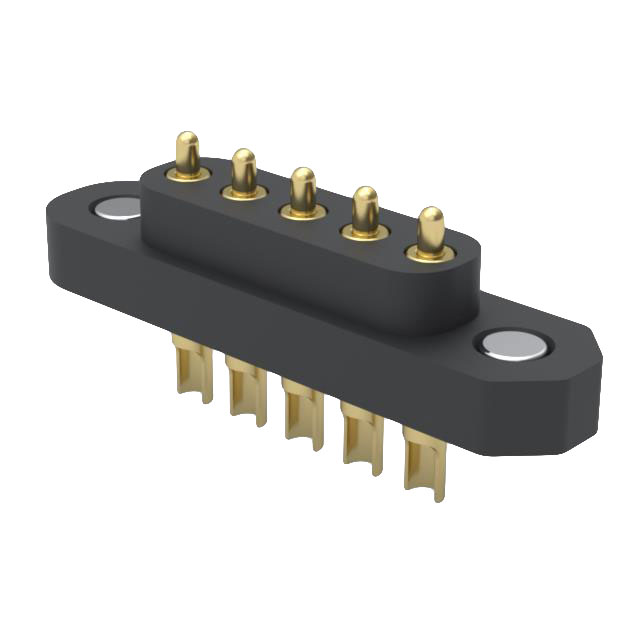

5 Position Spring Piston Connector Through Hole, Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 878-22-005-00-011101 |
|---|---|
| Connector Type | Piston |
| Contact Finish | Gold |
| Contact Finish Thickness | 20 µin |
| Material | Brass Alloy |
| Mounting Type | Solder Cup, Through Hole |
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Pitch | 0.157 in |
