A12106NFSS

Active

Hoffman Enclosures, Inc.

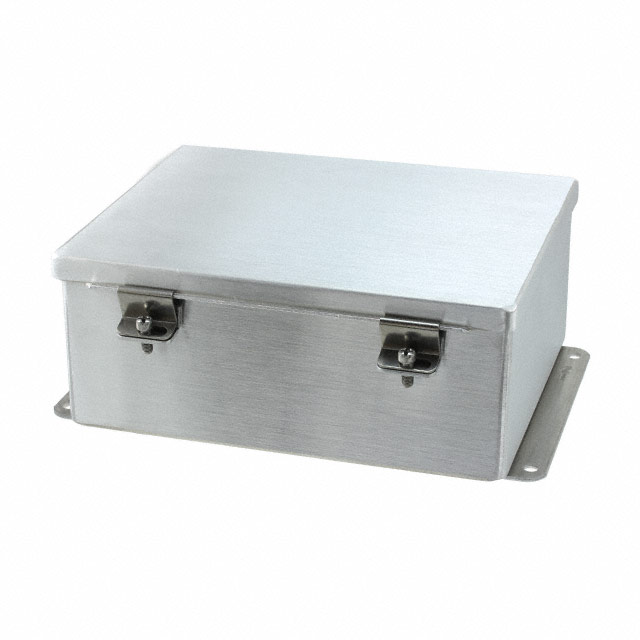

JUNCTION BOX S STEEL 12"L X 10"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX S STEEL 12"L X 10"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Stainless Steel Natural Cover Included 12.008" L x 10.000" W (305.00mm x 254.00mm) X 5.984" (152.00mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A12106NFSS	A12106 Series

Area (L x W)	120 in²	120 in²
Area (L x W)	774 cm²	774 cm²
Color	Natural	Natural
Container Type	Junction Box	Junction Box
Design	Cover Included	Hinged Door, Lid, Cover Included
Features	Sealing Gasket, Wall Mount	Wall Mount, Sealing Gasket, Stainless Steel Hinge
Height [z]	5.984 in	5.984 in
Height [z]	152 mm	152 mm
Ratings	13, IP66, UL-508A, 4X, 12, NEMA 3R, 4	13, IP66, UL-508A, 4X, 12, NEMA 3R, 4
Size / Dimension [x]	12.008 in	12.008 in
Size / Dimension [x]	305 mm	305 mm
Size / Dimension [y]	254 mm	254 mm
Size / Dimension [y]	10 in	10 in
Thickness	14 Gauge	14 Gauge
Weight	5.4 kg	5.4 kg
Weight	12 lbs	12 lbs

JUNCTION BOX S STEEL 12"L X 10"W

Part	Weight	Weight	Design	Ratings	Height [z]	Height [z]	Features	Color	Area (L x W)	Area (L x W)	Thickness	Container Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Hoffman Enclosures, Inc. A12106CHNFSS	5.4 kg	12 lbs	Hinged Door, Lid	12, 13, 4, 4X, IP66, NEMA 3R, UL-508A	5.984 in	152 mm	Sealing Gasket, Stainless Steel Hinge, Wall Mount	Natural	120 in²	774 cm²	14 Gauge	Junction Box	254 mm	10 in	12.008 in	305 mm
Hoffman Enclosures, Inc. A12106CHNFSS6	5.4 kg	12 lbs	Hinged Door, Lid	12, 13, 4, 4X, IP66, NEMA 3R, UL-508A	5.984 in	152 mm	Sealing Gasket, Stainless Steel Hinge, Wall Mount	Natural	120 in²	774 cm²	14 Gauge	Junction Box	254 mm	10 in	12.008 in	305 mm
Hoffman Enclosures, Inc. A12106NFSS	5.4 kg	12 lbs	Cover Included	12, 13, 4, 4X, IP66, NEMA 3R, UL-508A	5.984 in	152 mm	Sealing Gasket, Wall Mount	Natural	120 in²	774 cm²	14 Gauge	Junction Box	254 mm	10 in	12.008 in	305 mm
