009175002702996

Active

KYOCERA AVX

CONN WIRE IDC 2POS 26AWG SMD RA

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN WIRE IDC 2POS 26AWG SMD RA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

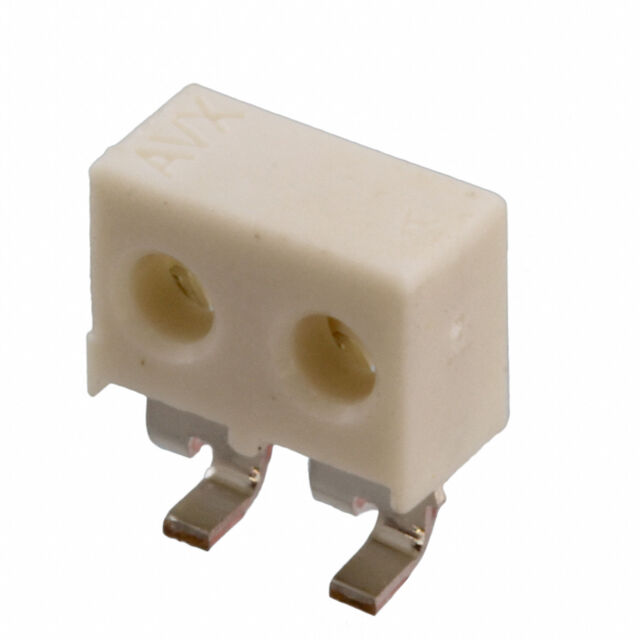

2 Position Individual Wires Connector White IDC 26 AWG Surface Mount, Right Angle

Technical documentation and resources

Specification	009175002702996	009175 Series

Board-Side Pitch	2.5 mm	2.5 mm
Board-Side Pitch	0.098 in	0.098 in
Cable Pitch	2.5 mm	2.5 mm
Cable Pitch	0.098 in	0.098 in
Cable Termination	IDC	IDC
Color	White	White
Connector Type	Individual Wires	Individual Wires
Contact Finish	Tin	Tin
Features	Closed End	Closed End, Feed Through
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Number of Positions	2	2
Number of Positions Loaded	All	All
Number of Rows	1	1
Wire Gauge	26 AWG	26 - 28 AWG
Wire Gauge	-	Stranded or Solid

Part	Number of Rows	Connector Type	Features	Wire Gauge	Number of Positions Loaded	Mounting Type	Color	Board-Side Pitch	Board-Side Pitch	Contact Finish	Cable Termination	Cable Pitch	Cable Pitch	Number of Positions	Wire Gauge
KYOCERA AVX 009175003702996	1	Individual Wires	Closed End	26 AWG	All	Surface Mount, Right Angle	White	2.5 mm	0.098 in	Tin	IDC	2.5 mm	0.098 in
KYOCERA AVX 009175002702996	1	Individual Wires	Closed End	26 AWG	All	Surface Mount, Right Angle	White	2.5 mm	0.098 in	Tin	IDC	2.5 mm	0.098 in	2
KYOCERA AVX 009175002701106	1	Individual Wires	Feed Through	28 AWG	All	Surface Mount	White	2.5 mm	0.098 in	Tin	IDC	2.5 mm	0.098 in	2	Stranded or Solid
KYOCERA AVX 009175002702906	1	Individual Wires	Feed Through	26 AWG	All	Surface Mount, Right Angle	White	2.5 mm	0.098 in	Tin	IDC	2.5 mm	0.098 in	2
KYOCERA AVX 009175003702906	1	Individual Wires	Feed Through	26 AWG	All	Surface Mount, Right Angle	White	2.5 mm	0.098 in	Tin	IDC	2.5 mm	0.098 in
