B40S15A

Active

Diotec Semiconductor

BRIDGE RECT 1P 80V 1.5A 4-SO-DIL

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1P 80V 1.5A 4-SO-DIL

Technical Specifications

Parameters and characteristics for this part

Specification	B40S15A

Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C

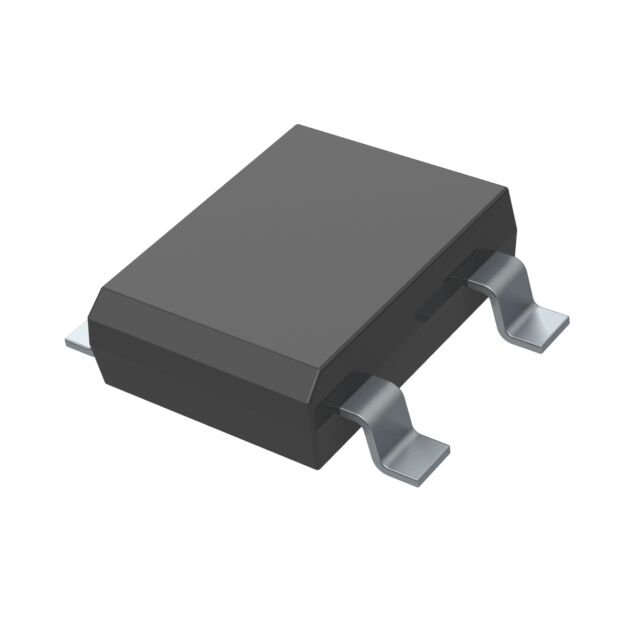

Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SO-DIL SLIM
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	80 V

BRIDGE RECT 1P 80V 1.5A 4-SO-DIL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Peak Reverse (Max) [Max]	Package / Case	Mounting Type	Supplier Device Package	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Technology	Diode Type	Voltage - Forward (Vf) (Max) @ If
Diotec Semiconductor B40S15A	150 °C	-50 °C	80 V	4-SMD, Gull Wing	Surface Mount	4-SO-DIL SLIM	5 µA	1.5 A	Standard	Single Phase	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 0.09

General part information

Bridge Rectifier Single Phase Standard 80 V Surface Mount 4-SO-DIL SLIM
