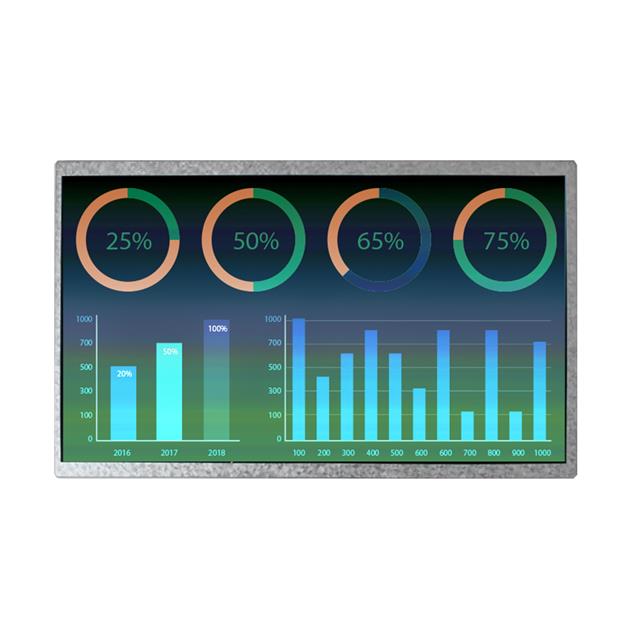

NHD-10.1-1024600AF-ASXV#
ObsoleteNewhaven Display Intl
10.1 PREMIUM RBG TFT
Deep-Dive with AI
Search across all available documentation for this part.
NHD-10.1-1024600AF-ASXV#
ObsoleteNewhaven Display Intl
10.1 PREMIUM RBG TFT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-10.1-1024600AF-ASXV# |
|---|---|
| Backlight | LED - White |
| Controller Type | HX8282 |
| Diagonal Screen Size [custom] | 256.54 mm |
| Diagonal Screen Size [custom] | 10.1 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 1024 |
| Dot Pixels [y] | 600 pixels |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel |
| Interface | 24 Bit |
| Viewing Area [y] | 226.42 mm |
| Viewing Area [z] | 128.98 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-10.1-1024600AF-ASXV#
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 10.1" (256.54mm) 1024 x 600
Documents
Technical documentation and resources
