IRSM005-301MH
ActiveInfineon Technologies

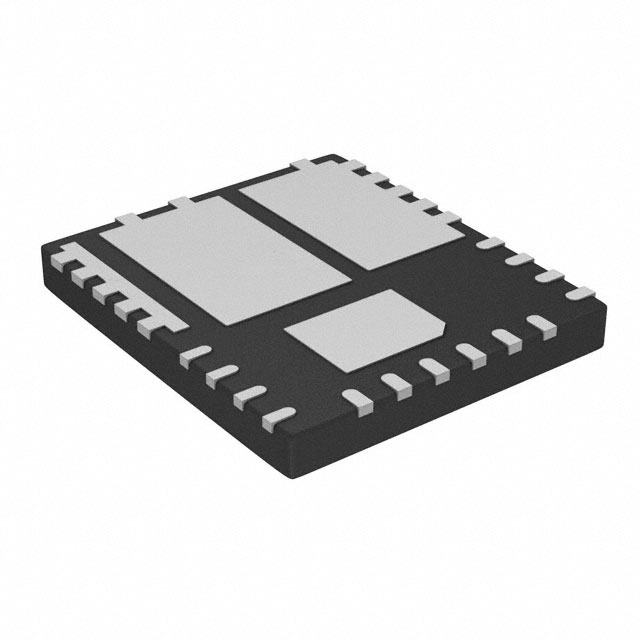

IC HALF BRIDGE DRIVER 30A 27QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IRSM005-301MH
ActiveInfineon Technologies
IC HALF BRIDGE DRIVER 30A 27QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IRSM005-301MH |
|---|---|
| Applications | AC Motors, DC Motors, General Purpose, DC-DC Converters |
| Current - Output / Channel | 30 A |
| Fault Protection | UVLO |
| Features | Bootstrap Circuit |
| Interface | Logic |
| Load Type | Capacitive, Inductive |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | 27-PowerVQFN |
| Rds On (Typ) | 16 mOhm |
| Supplier Device Package | 27-PQFN (7x8) |
| Technology | Power MOSFET |
| Voltage - Load | 100 V |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.48 | |
| 10 | $ 3.12 | |||
| 25 | $ 2.95 | |||
| 80 | $ 2.56 | |||
| 260 | $ 2.43 | |||
| 520 | $ 2.18 | |||
| 1040 | $ 1.84 | |||
| 2600 | $ 1.74 | |||
| 4940 | $ 1.68 | |||
Description
General part information
IRSM005 Series
Half Bridge Driver AC Motors, DC Motors, DC-DC Converters, General Purpose Power MOSFET 27-PQFN (7x8)
