FMC1314316-24

FMC1314316-24

Active
Fairview Microwave

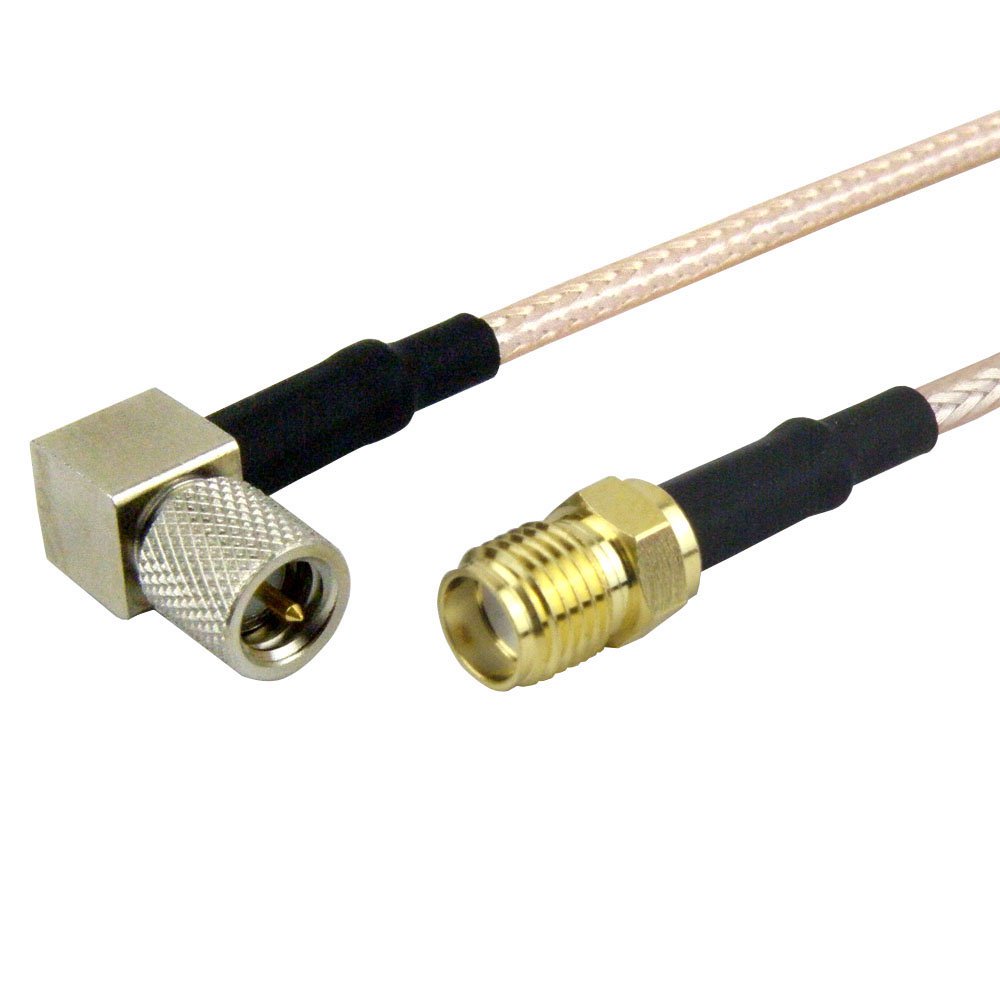

CBL ASSY SMAJACK-10-32PLUG 24

Find alt
FMC1314316-24

FMC1314316-24

Active
Fairview Microwave

CBL ASSY SMAJACK-10-32PLUG 24

Find alt

Description

General part information

FMC1314316-24

Cable Assembly Coaxial

Technical Specifications

Parameters and characteristics for this part

SpecificationFMC1314316-24
1st ConnectorSMA Jack
1st Connector Mounting TypeFree Hanging (In-Line)
1st Contact GenderFemale
2nd Connector10-32 Plug, Right Angle
2nd Connector Mounting TypeFree Hanging (In-Line)
2nd Contact GenderMale
Cable Impedance50 Ohms
Cable TypeRG, 316
ColorTan
Connector Impedance50 Ohms
Length24 in
Overall Impedance50 Ohms
Style10-32 to SMA
