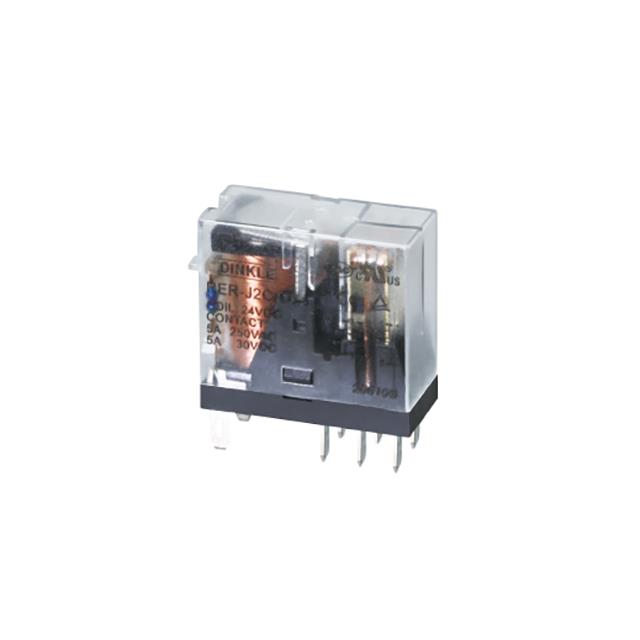

RER-J2C-D24

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 5A 24V

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 5A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPDT 5A 120V

Part	Contact Form	Coil Voltage	Coil Current	Relay Type	Features	Must Operate Voltage	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Switching Voltage [Max]	Operate Time	Contact Material	Coil Type	Mounting Type	Coil Resistance	Release Time
Dinkle Corporation, USA RER-J2C-A120	DPDT (2 Form C)	120 VAC	7.6 mA	General Purpose	Lighted Indicator	96 VAC	5 A	-40 °C	55 °C	36 VAC	30 VDC, 250 VAC	20 ms	Silver Tin Oxide (AgSnO)	Non Latching	Socketable	4.43 kOhms	20 ms
Dinkle Corporation, USA RER-J2C-D24	DPDT (2 Form C)	24 VDC	21.8 mA	General Purpose	Lighted Indicator	18 VDC	5 A	-40 °C	55 °C	2.4 VDC	30 VDC, 250 VAC	20 ms	Silver Tin Oxide (AgSnO)	Non Latching	Socketable		20 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
