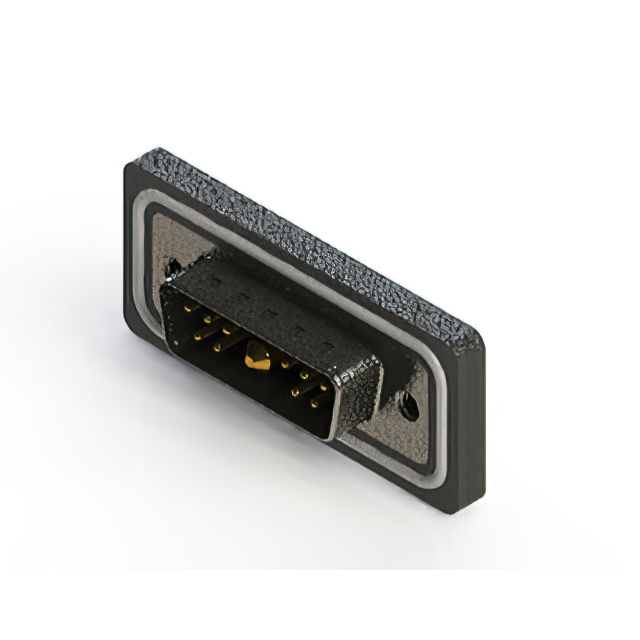

629W11W1140-1NA

Active

EDAC Inc.

CONN D-SUB PLUG 11POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W11W1140-1NA

Active

EDAC Inc.

CONN D-SUB PLUG 11POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W11W1140-1NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

629W11W Series

Part	Number of Rows	Features	Connector Type	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Ingress Protection	Shell Size, Connector Layout	Shell Size, Connector Layout	Color	Termination	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Connector Style	Material Flammability Rating	Voltage Rating	Flange Feature	Dielectric Material	Contact Material	Current Rating (Amps)
EDAC Inc. 629W11W1140-1NA	2	Grounding Indents Shielded	Male Pins Plug	10A 5A	0.127 µm	5 µin	Panel Mount Right Angle Through Hole	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (M3)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy
EDAC Inc. 629W11W1640-2NB	2	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Male Pins Plug		0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (M3)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	5 A 20 A
EDAC Inc. 629W11W1140-2N4	2	Grounding Indents Mounting Brackets Shielded	Male Pins Plug		0.127 µm	5 µin	Panel Mount Right Angle Through Hole	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (4-40)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	5 A 20 A
EDAC Inc. 629W11W1640-3NB	2	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Male Pins Plug		0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (M3)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	5 A 30 A
EDAC Inc. 629W11W1640-4NC	2	Grounding Indents Mounting Brackets Shielded	Male Pins Plug		0.76 Ám	30 Áin	Through Hole Right Angle	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (M3)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	5 A 40 A
EDAC Inc. 629W11W1640-3NA	2	Grounding Indents Shielded	Male Pins Plug		0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (M3)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	5 A 30 A
EDAC Inc. 629W11W1140-1N4	2	Grounding Indents Mounting Brackets Shielded	Male Pins Plug	10A 5A	0.127 µm	5 µin	Panel Mount Right Angle Through Hole	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (4-40)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy
EDAC Inc. 629W11W1140-1NC	2	Grounding Indents Mounting Brackets Shielded	Male Pins Plug	10A 5A	0.127 µm	5 µin	Through Hole Right Angle	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (M3)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy
EDAC Inc. 629W11W1640-1N2	2	Grounding Indents Shielded	Male Pins Plug	10A 5A	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (4-40)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy
EDAC Inc. 629W11W1640-3N3	2	Board Lock Grounding Indents Mounting Brackets Shielded	Male Pins Plug		0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	-55 °C	125 °C	Signal and Power	IP67 - Dust Tight Waterproof	11C1 11W1	2	Black	Solder	Nickel Plated Steel	10	1	11	Combo D-Sub	UL94 V-0	125 VDC	Housing/Shell (4-40)	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	5 A 30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 13.52

Description

General part information

629W11W Series

11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
