131330

Active

TE Connectivity AMP Connectors

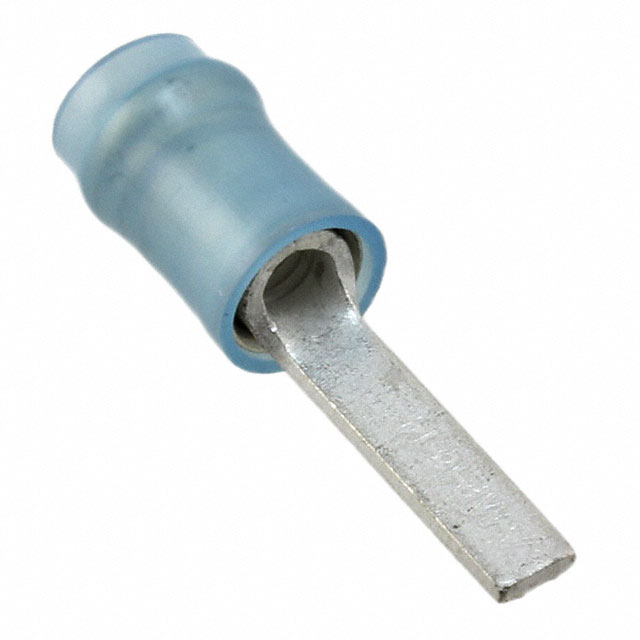

CONN WIRE PIN TERM 14-16AWG PIDG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN WIRE PIN TERM 14-16AWG PIDG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	131330	1313 Series

Color	Blue	Yellow, Blue
Contact Finish	Tin	Tin
Contact Material	Copper	Copper
Features	-	Serrated Termination
Insulation	Insulated	Insulated
Insulation Diameter	-	0.15 "
Insulation Diameter	-	6.4 mm
Insulation Diameter	-	3.81 mm
Insulation Diameter	-	0.252 "
Insulation Diameter [Max] [diameter]	0.17 ", 4.32 mm	0.17 - 4.32 "
Insulation Diameter [Min] [diameter]	2.92 mm, 0.115 in	0.115 - 2.92 mm
Length - Overall [x]	22.63 mm	22.63 - 29.21 mm
Length - Overall [x]	0.891 in	0.891 - 1.15 in
Length - Pin	-	0.555 in
Length - Pin	-	14.1 mm
Length - Termination	-	15.1 mm
Length - Termination	-	0.594 in
Length - Termination [x]	10.06 mm	10.06 mm
Length - Termination [x]	0.396 in	0.396 in
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Pin Diameter	-	0.039 "
Pin Diameter	-	4.1 mm
Pin Diameter	-	0.161 "
Pin Diameter	-	1 mm
Pin Diameter [custom]	0.031 "	0.031 "
Pin Diameter [custom]	0.115 "	0.115 "
Pin Diameter [custom]	0.8 mm	0.8 mm
Pin Diameter [custom]	2.92 mm	2.92 mm
Termination	Crimp	Crimp
Wire Gauge	-	12 AWG
Wire Gauge	-	10 AWG

CONN WIRE PIN TERM 10-12AWG PIDG

Part	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Pin [x]	Length - Pin [x]	Length - Termination	Length - Termination	Length - Overall [x]	Length - Overall [x]	Contact Finish	Insulation	Material - Insulation	Contact Material	Termination	Features	Pin Diameter [y]	Pin Diameter [x]	Pin Diameter [x]	Pin Diameter [y]	Wire Gauge [Max]	Wire Gauge [Min]	Color	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Length - Termination [x]	Length - Termination [x]	Pin Diameter [custom]	Pin Diameter [custom]	Pin Diameter [custom]	Pin Diameter [custom]
TE Connectivity AMP Connectors 131332	0.15 "	6.4 mm	3.81 mm	0.252 "	0.555 in	14.1 mm	15.1 mm	0.594 in	1.15 in	29.21 mm	Tin	Insulated	Nylon, Polyamide (PA)	Copper	Crimp	Serrated Termination	0.039 "	4.1 mm	0.161 "	1 mm	12 AWG	10 AWG	Yellow
TE Connectivity AMP Connectors 131330									0.891 in	22.63 mm	Tin	Insulated	Nylon, Polyamide (PA)	Copper	Crimp								Blue	0.115 in, 2.92 mm	0.17 ", 4.32 mm	10.06 mm	0.396 in	0.031 "	0.115 "	0.8 mm	2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Pin Terminal Connector 14-16 AWG PIDG Crimp
