MAX9972ACCS+TD
ActiveAnalog Devices Inc./Maxim Integrated
IC COMPARATOR R-R 80TQFP
Deep-Dive with AI
Search across all available documentation for this part.
MAX9972ACCS+TD
ActiveAnalog Devices Inc./Maxim Integrated
IC COMPARATOR R-R 80TQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9972ACCS+TD | MAX9972 Series |
|---|---|---|
| Logic Type | Comparator, Driver | Comparator, Driver |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits | 4 | 4 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |

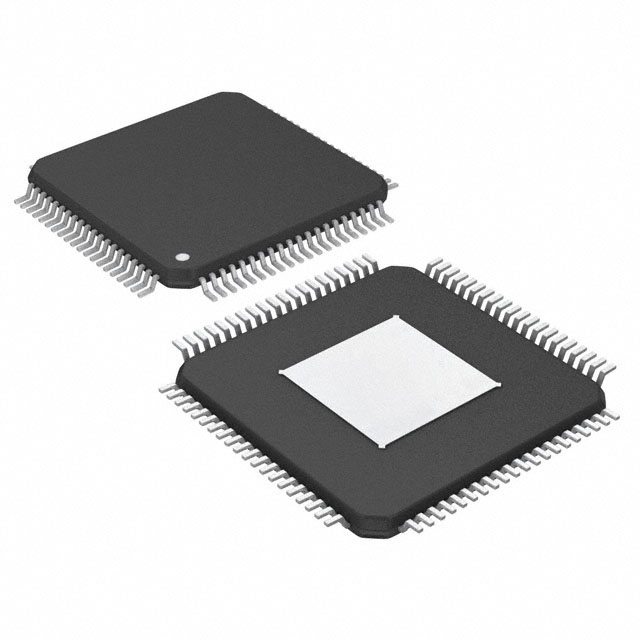

| Package / Case | 80-TQFP Exposed Pad | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-TQFP-EP (12x12) | 80-TQFP-EP (12x12) |
| Supply Voltage [Max] | 5.2 V | 5.2 V |
| Supply Voltage [Min] | -2.2 V | -2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 58.15 | |
MAX9972 Series
IC COMPARATOR R-R 80TQFP
| Part | Logic Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Supplier Device Package | Number of Bits | Supply Voltage [Max] | Supply Voltage [Min] |
|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9972ACCS+TD | Comparator, Driver | 80-TQFP Exposed Pad | 70 °C | 0 °C | Surface Mount | 80-TQFP-EP (12x12) | 4 | 5.2 V | -2.2 V |
Analog Devices Inc./Maxim Integrated MAX9972ACCS+D | Comparator, Driver | 80-TQFP Exposed Pad | 70 °C | 0 °C | Surface Mount | 80-TQFP-EP (12x12) | 4 | 5.2 V | -2.2 V |
Description
General part information
MAX9972 Series
Comparator, Driver IC 80-TQFP-EP (12x12)
Documents
Technical documentation and resources
No documents available
